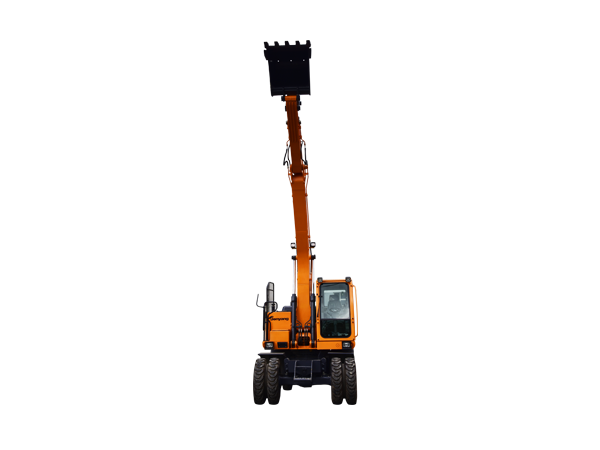

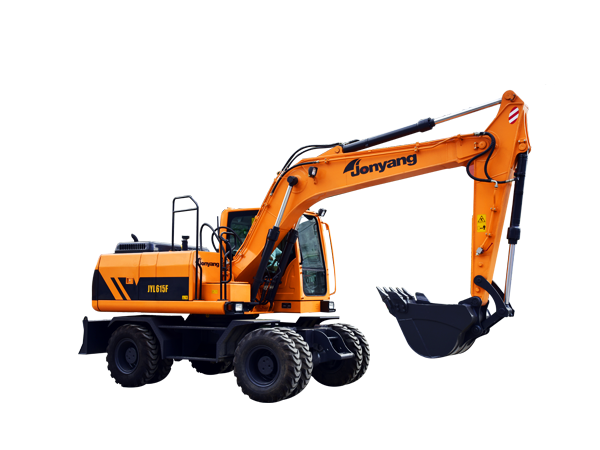

Jonyang JYL615F

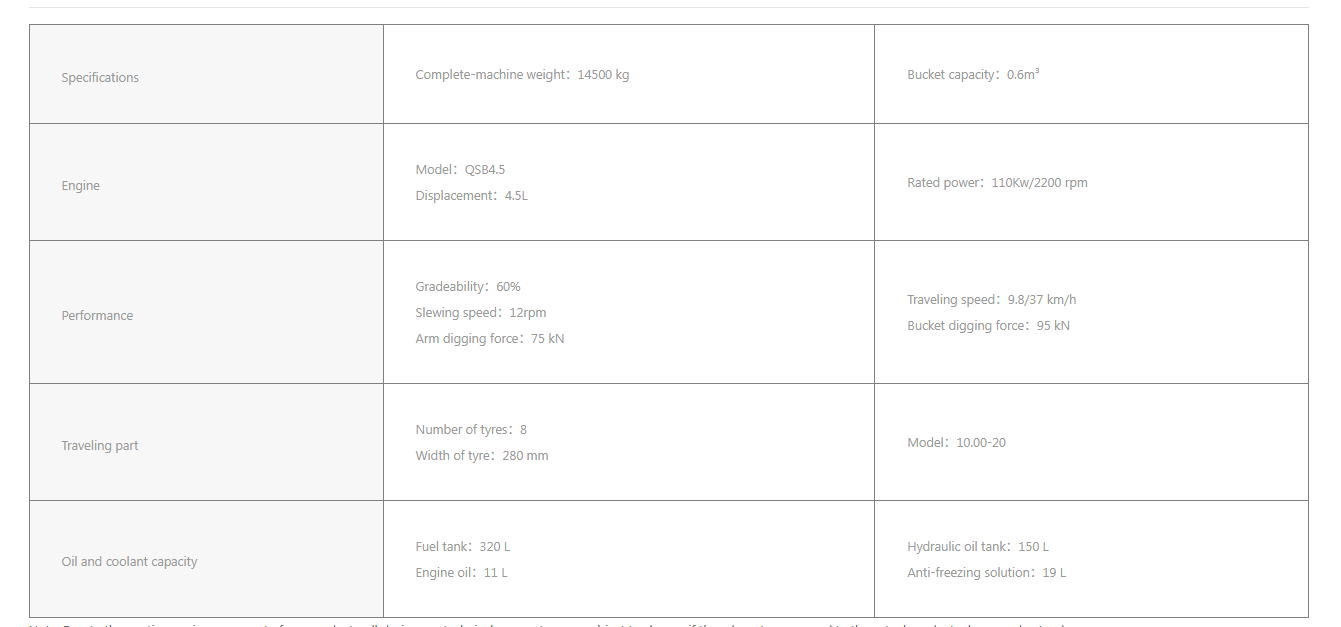

Weight
14.5t

Power
110kw

Bucket capacity
0.6m³

Mini. Order
1 unit

Feature

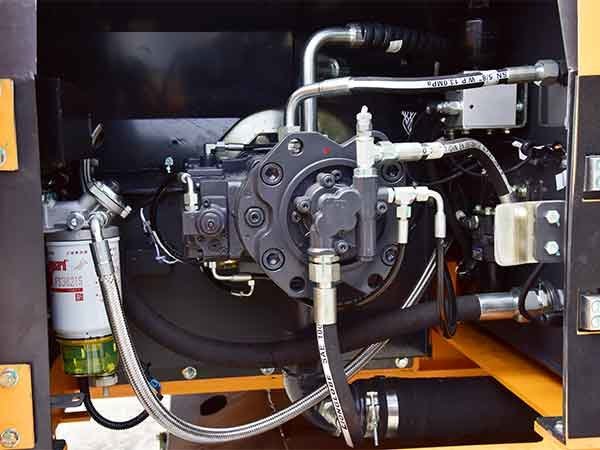

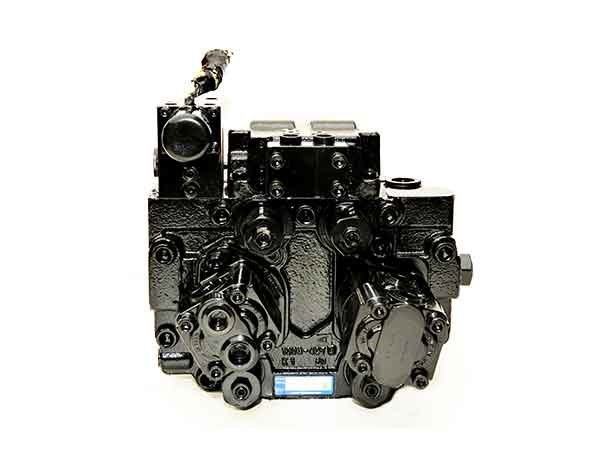

● Cummins imported engine with original packaging is adopted, which meets European III emission standards, with large torque and strong power, especially suitable for heavy-duty operation. ● A new generation of customized hydraulic system has such advantages as small pressure loss, high flow distribution efficiency, smooth compound actions and high reliability, which makes the complete machine more energy-efficient. ● It is designed with no outriggers. Gears can be shifted without stopping the vehicle. The vehicle has a high traveling speed, strong adaptability to sites, and excellent maneuverability for moving to other sites. ● In order to ensure the reliability, each type of excavator with finalized design must undergo 2,000-hour industrial test and pass the rigorous test of China National Construction Machinery Quality Supervising Test Centre. ● The cab is designed with anti-rollover and anti-falling object structure, meets the safety standards of China, European Union, North America and other regions, and has obtained TOPS and FOPS safety certification. ● Enhanced working device and reinforced bulldozing blade are configured as standard, the whole machine becomes more stable and reliable when performing operations, and the digging force is greater than that of products with the same tonnage. ● The turning radius is small. During the excavation operation, the tail of the turning platform is within the shrinking range of the bulldozing blade. Therefore, the operator can safely turn the vehicle when putting down the bulldozing blade, which makes the operation more effortless. ● Double-handrail structural design makes it more convenient to get on and off the vehicle; ● The filter elements are centrally arranged on one side of the main pump, which is convenient for maintenance and servicing.

Discription
