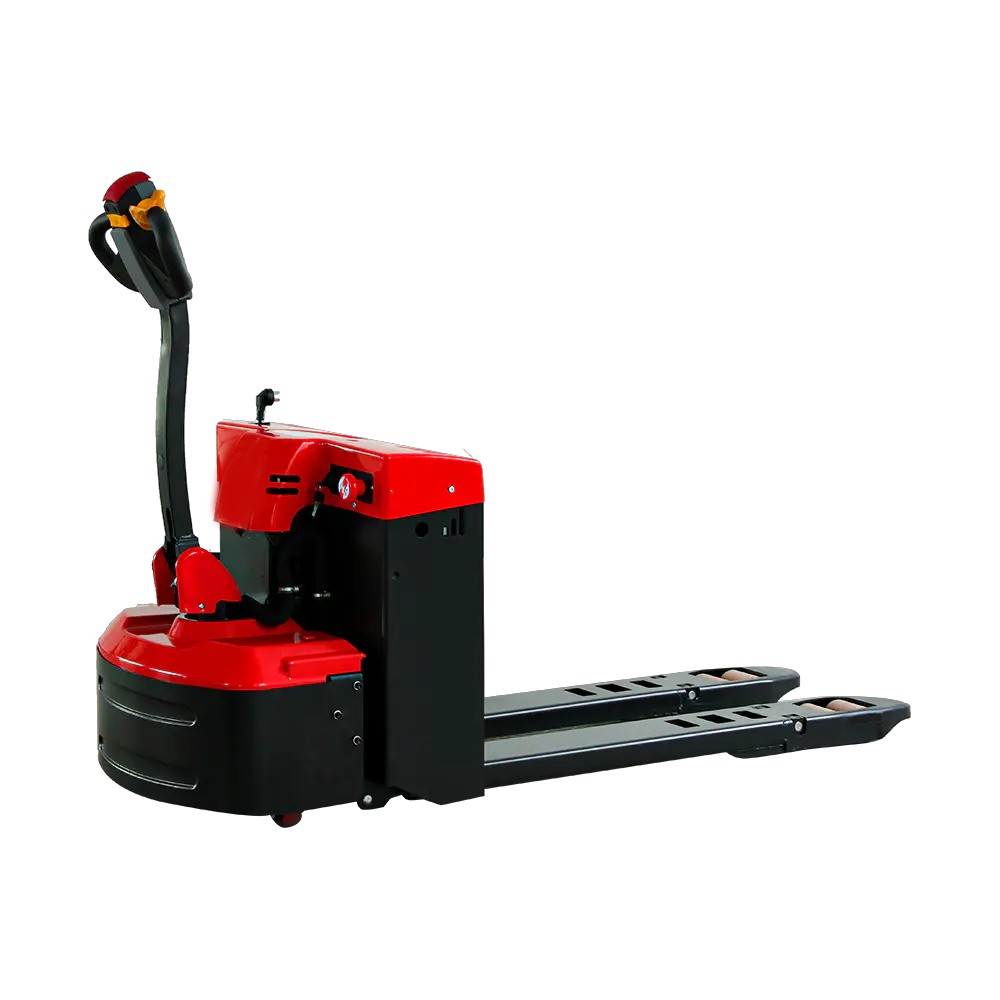

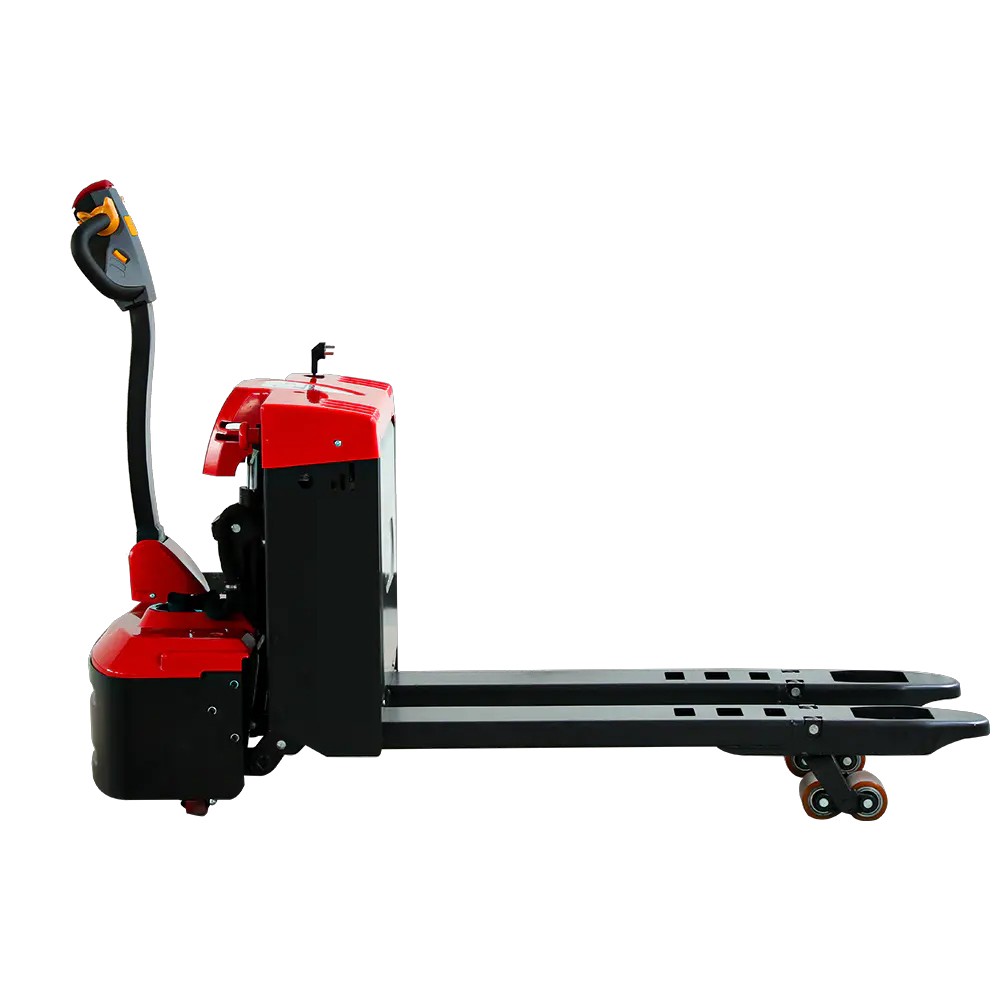

This model is designed to meet the needs of users for the large tonnage load of the Walkie Pallet Truck. The load capacity is 3T, and it can be used continuously for more than 7 hours. • Compact structure design, small turning radius; • Adopt high-strength special profiles, the whole vehicle has high strength and good stability; • Using 24V130Ah power battery, it can be used continuously for more than 7 hours; • With the mounted long tiller the operator can keep a safe and ergonomic distance while performing his work; • Multi-function handle with turtle speed switch, buzzer, emergency reverse, and one keylift function; • Reinforced Fork, drive wheel cover,make sure the high strength and safety; • The truck is equipped with a height limit switch.
Model | CBD30B | |||
Maximum load capacity | 3000kg | |||
load center | 600mm | |||
Maximum lifting height | 205mm | |||
Travel speed without load/with load | 5/4.5km/h | |||
Lifting speed without load /with load | 24mm/s | |||
Lowered speed without load /with load | 30mm/s | |||
Ascend slope ability without load /with load | 5/16% | |||
Weight (without battery) | 330kg | |||
Overall length/width of frame | 1792/720mm | |||
Wheelbase | 1389mm | |||
Fork size(length *width*thickness) | 1200*170*60mm | |||
Fork outside width | 550/685mm | |||
Min frounf height | 30mm | |||
Fork lowered height | 85mm | |||
Minimum turning radius | 1602mm | |||
Minimum intersecting aisie | 2346mm | |||
Front wheel | 80*98mm | |||
Drive wheel | 250*75mm | |||
Caster wheel | 115*55mm | |||
Drive motor Rated output/AC motor | 1.5kw | |||
Hoist motor Rated output/DC motor | 1.5kw | |||
Voltag/Capacity | 24/130V/Ah | |||
Weight | 52kg |
