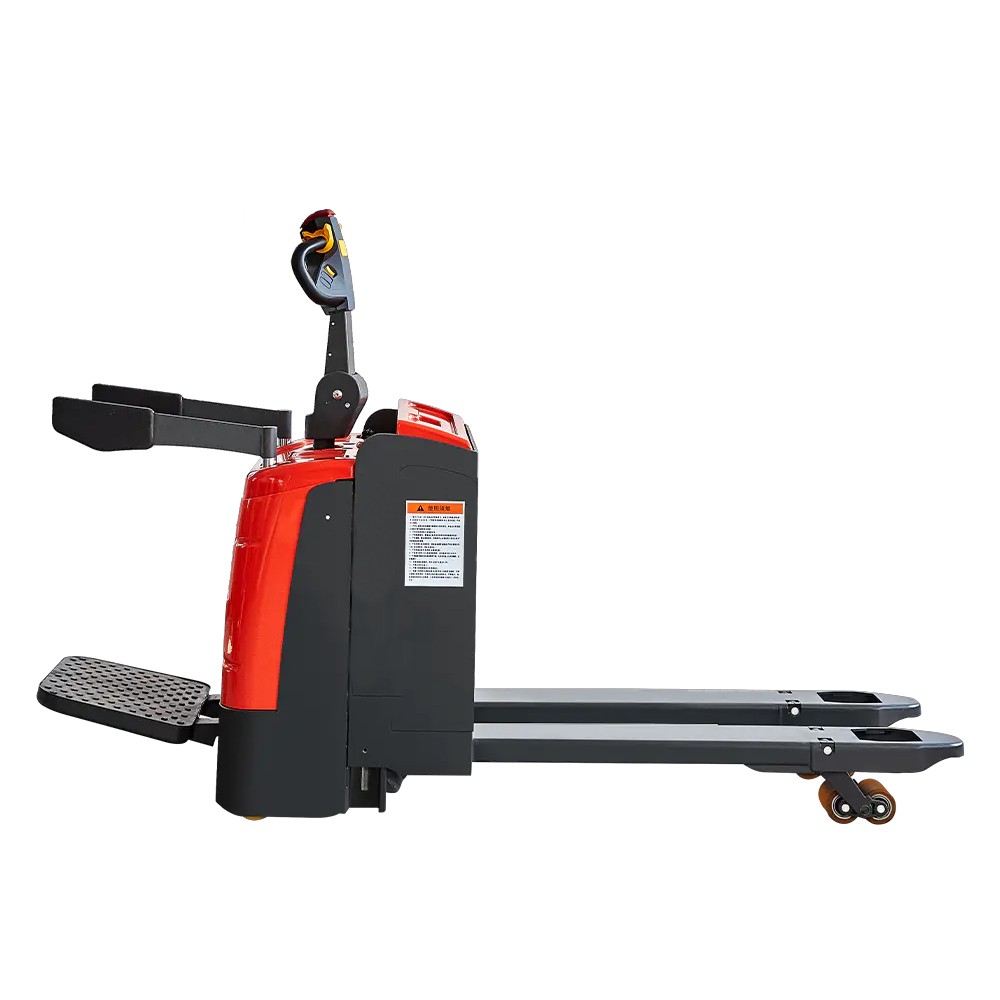

MYZG CBD--Stand-on electric pallet truck
Maximum load capacity
2000/2500/3000kg
Overall length/width of frame
1820*775/1942*850mm
Weight (without battery)
720kg
Fork size（length *width*thickness）
1220*170*55mm
Mini. Order
1 unit
Feature
This stand-on electric pallet truck has a super large tonnage load capacity and is equipped with a foldable stand-on pedal and an electric power steering system. It provides smooth operation and an excellent driving experience, and is highly efficient. • Electric Power Steering • 24V/210Ah Lead Acid Battery • AC 1.5KW Vertical Drive Motor • Optional: Controller Brand CURTIS • Fork Length/Width Customized
Discription
| Model | CBD20/25/30 |
| Maximum load capacity | 2000/2500/3000kg |
| load center | 600mm |
| Maximum lifting height | 205mm |
| Travel speed without load/with load | 5/4.5km/h |
| Lifting speed without load /with load | 24mm/s |
| Lowered speed without load /with load | 30mm/s |
| Ascend slope ability without load /with load | 5/16% |
| Weight (without battery) | 720kg |
| Overall length/width of frame(without platform) | 1820*775/1942*850mm |
| Wheelbase | 1350/1472mm |
| Fork size(length *widthw thiclness) | 1220*170*55mm |
| Fcrk outside width | 550/685mm |
| Min franf height | 30mm |
| Fork lowered height | 85mm |
| Minimum turning radius | 2070/2164mm |
| Minimum intersecting aisie | 2815/2708mm |
| Front wheel | 80*98mm |
| Drive wheel | 230*75mm |
| Caster wheel | 115*55mm |
| Drive motor Rated output/AC motor | 1.5 |
| Hoist motor Rated output/DC motor | 1.5kw |
| Volt ag/Capacity | 24/210V/Ah |
| Weight | 195kg |
