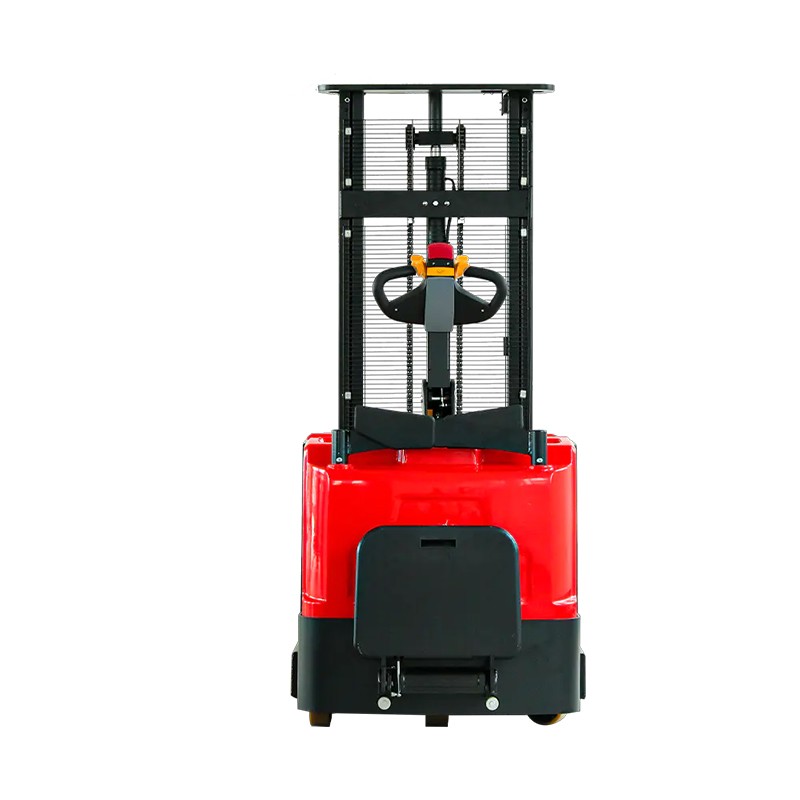

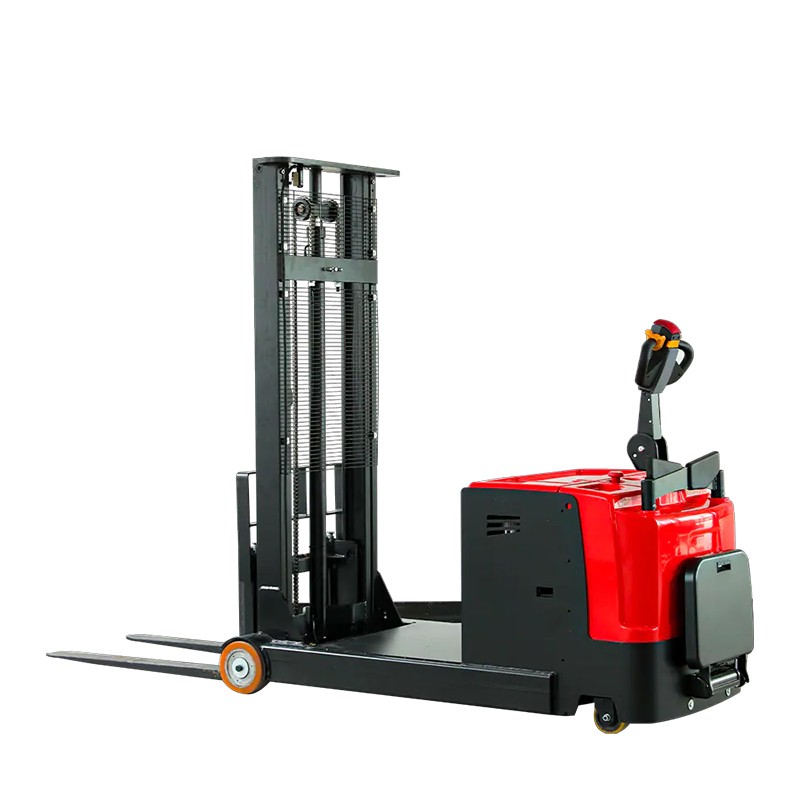

The MYZG CPDB Standard Counterbalance Electric Stacker is a versatile and efficient material handling solution designed for a wide range of applications in warehouses, distribution centers, and manufacturing facilities.Widely used in factories, enterprises, logistics and warehouses and other work scenarios. • Using 12#C+J special steel mast,the structure is more stable; • Configure EPS electronic power steering system; • BUCHER high-performance pump station, more stable lifting; • CURTIS controller, excellent performance; • 24V/210Ah large-capacity power battery,guaranteed strong and durable power; • 1.5Kw vertical driving wheel with anti-vibration device and small turing radius;
Model | CPDB15/20 | |||
Maximum load capacity | 1500/2000kg | |||
load center | 500mm | |||
Travel speed without load/with load | 4.5/3.5km/h | |||
Lifting speed without load/with load | 80/50mm/s | |||
Lowered speed without load/with load | 130/140mm/s | |||
Ascend slope ability without load/with load | 8/5% | |||
Overall length/width of frame | 3150/1040 | |||
Wheelbase | 1555mm | |||
Fork size(length *width*thickness) | 1170*100*35/40mm | |||
Fork outside width | 220-680mm | |||
Min frounf height | 35/40mm | |||
Fork lowered height | 60mm | |||
Minimum turning radius | 2245mm | |||
Minimum intersecting aisie | 3860mm | |||
Front wheel | 210*85mm | |||
Drive wheel | 230*75mm | |||
Caster wheel | 124*60mm | |||
Drive motor Rated output/DC motor | 1.5kw | |||
Hoist motor Rated output/DC motor | 2.2kw | |||
Battery Voltag/Capacity | 210V/Ah | |||
Battery Weight | 195kg | |||
Mast | Max.Lifting height | Mast overall height | Mast overall height | Service weight |
Single mast | 1600 mm | 2130 mm | 2130 mm | 1500 kg |
2-stage mast | 2000 mm | 1630 mm | 2600 mm | 1530kg |
2500 mm | 1880 mm | 3100 mm | 1680 kg | |
3000 mm | 2130mm | 3600 mm | 1735 kg | |
3500 mm | 2380 mm | 4100 mm | 1930 kg |
