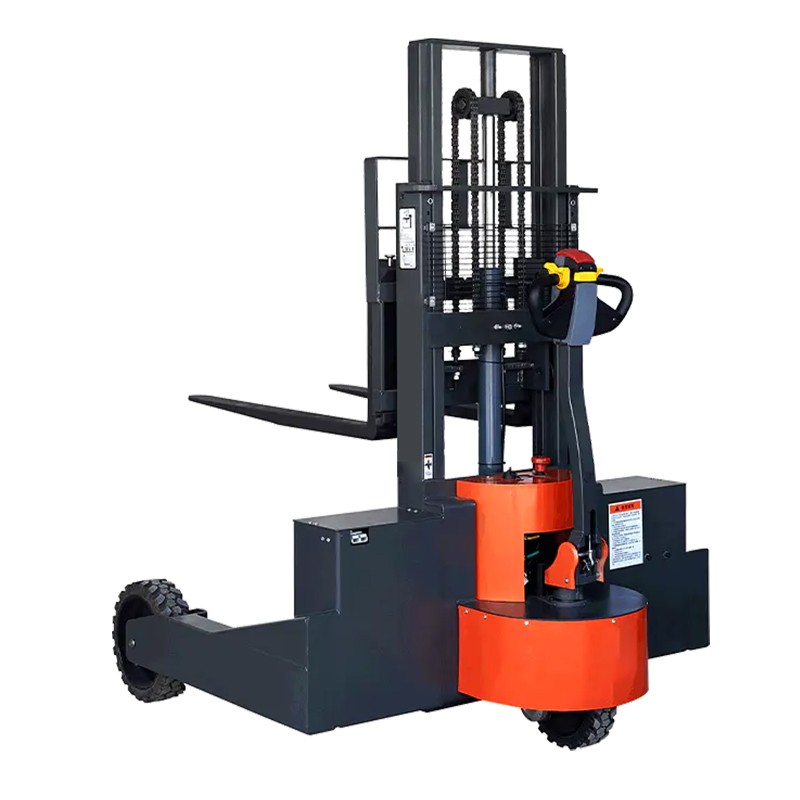

MYZG CDD-H All terrain Electric Stacker
Maximum load capacity
1500/2000kg
Overall length/width of frame
1730/1570mm
Fork size（length *width*thickness）
1070*100*35mm
Fork lowered height
90mm
Mini. Order
1 unit
Feature
This is an all-terrain outdoor electric pallet stacker, with a sturdy and stable structural design. It is suitable for rough outdoor surfaces such as construction sites and muddy areas. • Pump Brand: BUCHER • 12V/120Ah GEL Maintenance-free Battery • AC 1.5kW Horizontal Drive Motor • Controller Brand: CURTIS • Wheel: Solid Rubber
Discription
| Model | CDD-H | |||
| Maximum load capacity | 1500/2000kg | |||
| load center | 500mm | |||
| Travel speed without load/with load | 3.5/3km/h | |||
| Lifting speed without load/with load | 110/80mm/s | |||
| Lowered speed without load/with load | 100/100mm/s | |||
| Ascend slope ability without load/with load | 8/6% | |||
| Overall length/width of frame | 1730/1570 | |||
| Wheelbase | 1178mm | |||
| Fork size（length *width*thickness） | 1070*100*35mm | |||
| Fork outside width | 210-960mm | |||
| Min frounf height | 50mm | |||
| Fork lowered height | 130mm | |||
| Minimum turning radius | 1355mm | |||
| Minimum intersecting aisie | 2340mm | |||
| Front wheel | 375*115mm | |||
| Drive wheel | 300*90mm | |||
| Drive motor Rated output/DC motor | 1.5kw | |||
| Hoist motor Rated output/DC motor | 2.2kw | |||
| Battery Voltag/Capacity | 24/120V/Ah | |||
| Battery Weight | 35*2kg | |||
| Mast | Max.Lifting height | Mast overall height | Mast overall height | Service weight |
| Single mast | 1600 mm | 2080 mm | 2080 mm | 735 kg |
| 2-stage mast | 2000 mm | 1580 mm | 2550 mm | 755kg |
| 2500 mm | 1830 mm | 3050 mm | 790 kg | |
| 3000 mm | 2080/1980 mm | 3550/3450 mm | 820 kg | |
| 3500 mm | 2330 mm | 4050 mm | 850 kg | |
