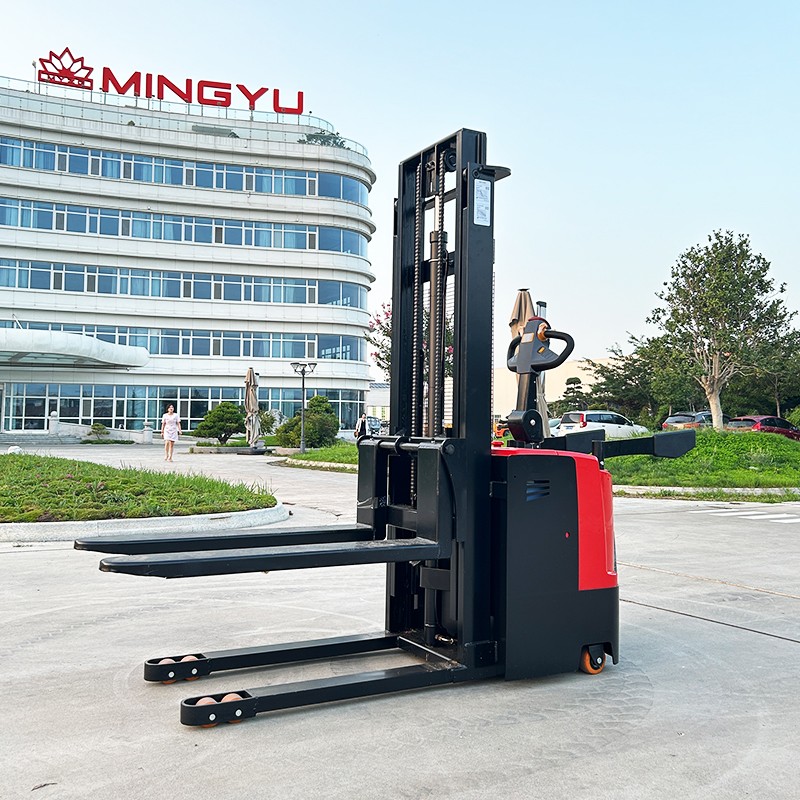

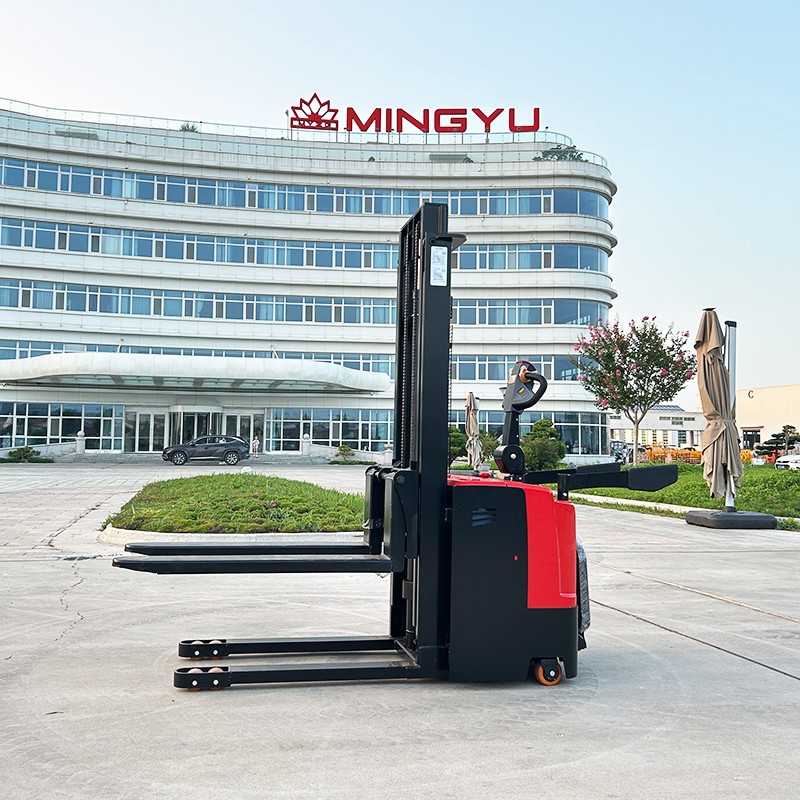

MYZG CDD-D Standard Standing Electric Stacker

Maximum load capacity
1500/2000kg

Overall length/width of frame
2130/850mm

Fork size(length *width*thickness)
1150*165*55mm

Fork lowered height
90mm

Mini. Order
1 unit

Feature

• AC Motor eliminates replacement of carbon brush; • The multi-function display instrument shows the electric quantity, malfunction, and accumulative working hours; • Damping cushion for low-noise operation; • Emergency reversing device in the handle provides higher safety for thewhole operation; • Built-in pressure relief valve protects the trucks from overloads,increases the reliability; • Emergency power disconnect switch; • Turtle-shaped low speed switch; • Auto deceleration function makes operation more safely.

Discription


ModelCDD15/20D
Maximum load capacity1500/2000kg
load center600mm
Travel speed without load/with load5/4.5km/h
Lifting speed without load/with load110/80mm/s
Lowered speed without load/with load100/100mm/s
Ascend slope ability without load/with load8/5%
Overall length/width of frame2130/850
Wheelbase1370mm
Fork sizelength *width*thickness1150*165*55mm
Fork outside width550/685mm
Min frounf height30mm
Fork lowered height90mm
Minimum turning radius2070mm
Minimum intersecting aisie2985mm
Front wheel80*70mm
Drive wheel250*75mm
Caster wheel115*55mm
Drive motor Rated output/DC motor1.5kw
Hoist motor Rated output/DC motor2.2kw
Battery Voltag/Capacity24/120V/Ah
Battery Weight35*2kg
MastMax.Lifting heightMast overall heightMast overall heightService weight
Single mast1600 mm2080 mm2080 mm670 kg
2-stage mast2000 mm1580 mm2550 mm755kg
2500 mm1830 mm3050 mm780 kg
3000 mm2080/1980 mm3550/3450 mm800 kg
3500 mm2330 mm4050 mm860 kg
