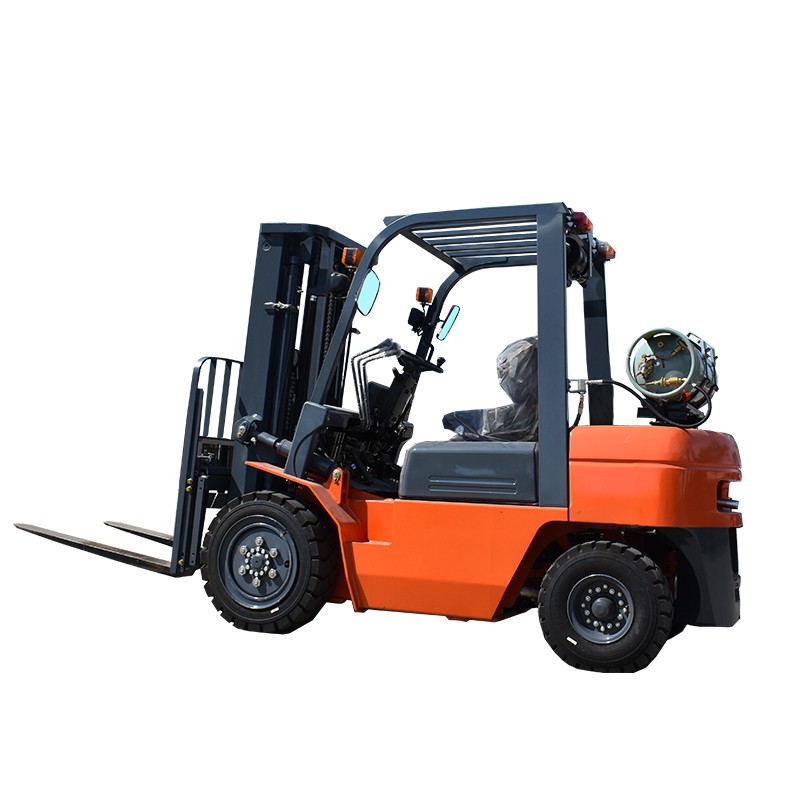

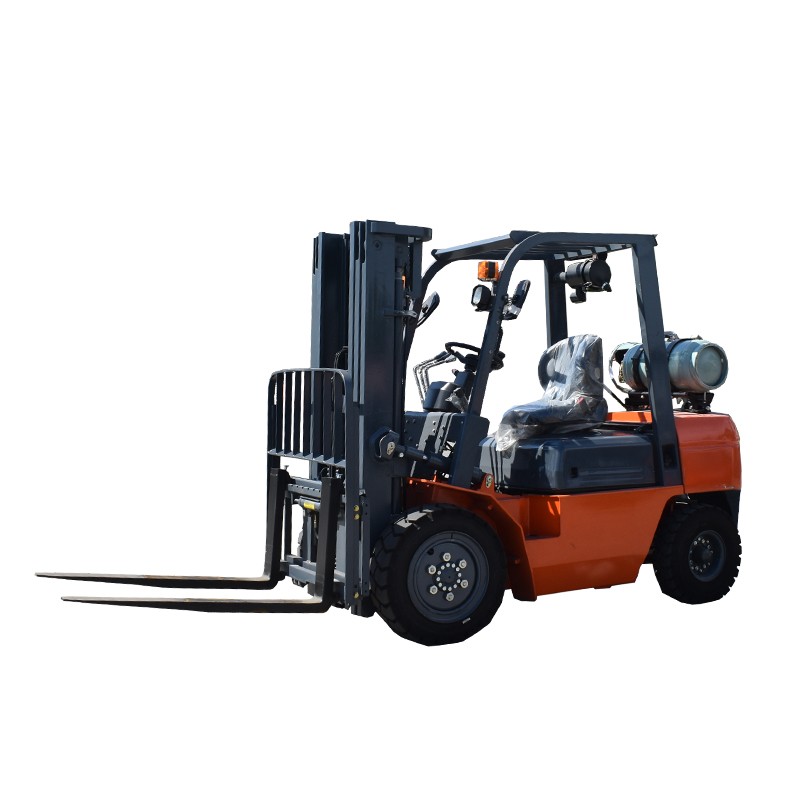

MYZG CPY30 gasoline/LPG forklift

Rated load capacity
3000kg

Total weight
4350kg

Standard lifting height
3000mm

Mini. Order
1 unit

Feature

Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize LPG forklift for its extreme versatility. Powerful enough to lift up to 3000 lbs.yet capable of navigating in 12-foot aisles, the mingyu forklift is a trusted multipurpose forklift. ● Hydraulic transmission and mechanical transmission types are all available. ● Flexible steering and small turning radius, with full Hydraulic Steering System. ● We use scientific ergonomic method to design CPCY-35 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends. ● Avariety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.

Discription

ModelCPCY30
Power typeGasoline /LPG
load capacity3000kg
Load centre distance500mm
lifting height3000mm
Mast tilt angle6/12
min turning radius2400mm
min ground clearance135mm
Overhead guard height2165mm
front overhang distance490mm
Max driving speedload/without load20km/h
Max lifting speedload/without load480mm/s
max drawbar pullMin Turning Radius22KN
Max climbing capacity20%
length(No fork)2700mm
width1225mm
Max lifting height of fork (with stopper shelf4265mm
Landing height of the gantry2060mm
tyrefront28x9-15-12PR
rear6.50-10-10PR
wheel base1700mm
wheel trackfront/rear1000/970mm
weightwithout load4350kg
accumulatorvoktage/capacity12/80
enginemodelGUANGQING/NISSAN
