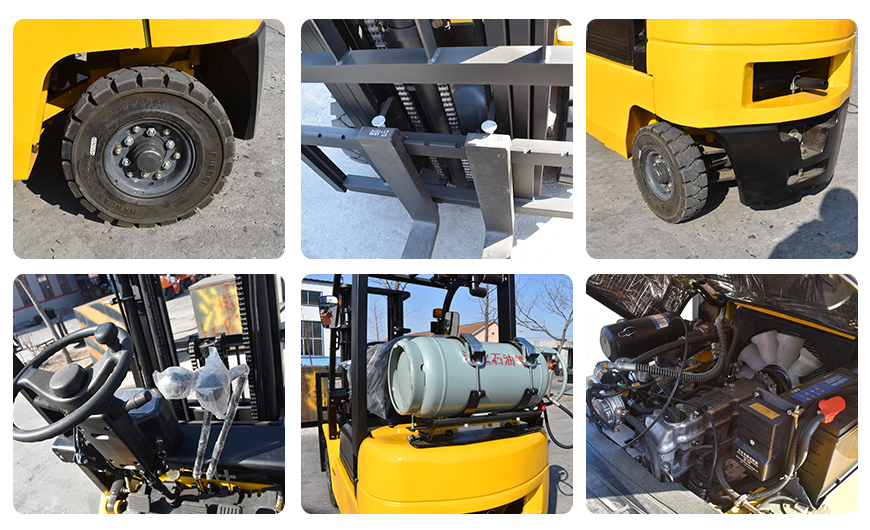

CPCR15 is a dual-fuel forklift, gasoline/LPG, which uses a load sensing steering system to further improve the operating efficiency. It uses a suspended cabin (roof guard) technology to further reduce the vibration of the whole vehicle. It uses a fully enclosed instrument panel and bottom plate to isolate chassis noise, reduce ear noise, hot air backflow isolation device, optimized cooling air duct, aluminum plate-fin water tank, improve the cooling capacity and ensure the reliable operation of the engine. It can be matched with imported engines such as Guangqing engine Nissan etc imported engine, and can be equipped with sideshifter, and the lifting height can be increased ·The overall performance is improved. ·Ergonomic performance improvement. ·Safety and reliability improvement. ·Improved maintenance convenience. ·Energy conservation and environmental protection.
power | gasoline/LPG |
Rated load capacity | 1500kg |
Load center distance | 500mm |
wheelbase | 1410mm |
weight | 2660kg |
tyre | 6.50-10-10PR |
5.00-8-8PR | |
Standard lifting height | 3000mm |
engine | guangqing / Nissan |
Minimum turning radius | 1955mm |
Maximum driving speed | 13.5Km/h |
Maximum lifting speed | 590mm/s |
