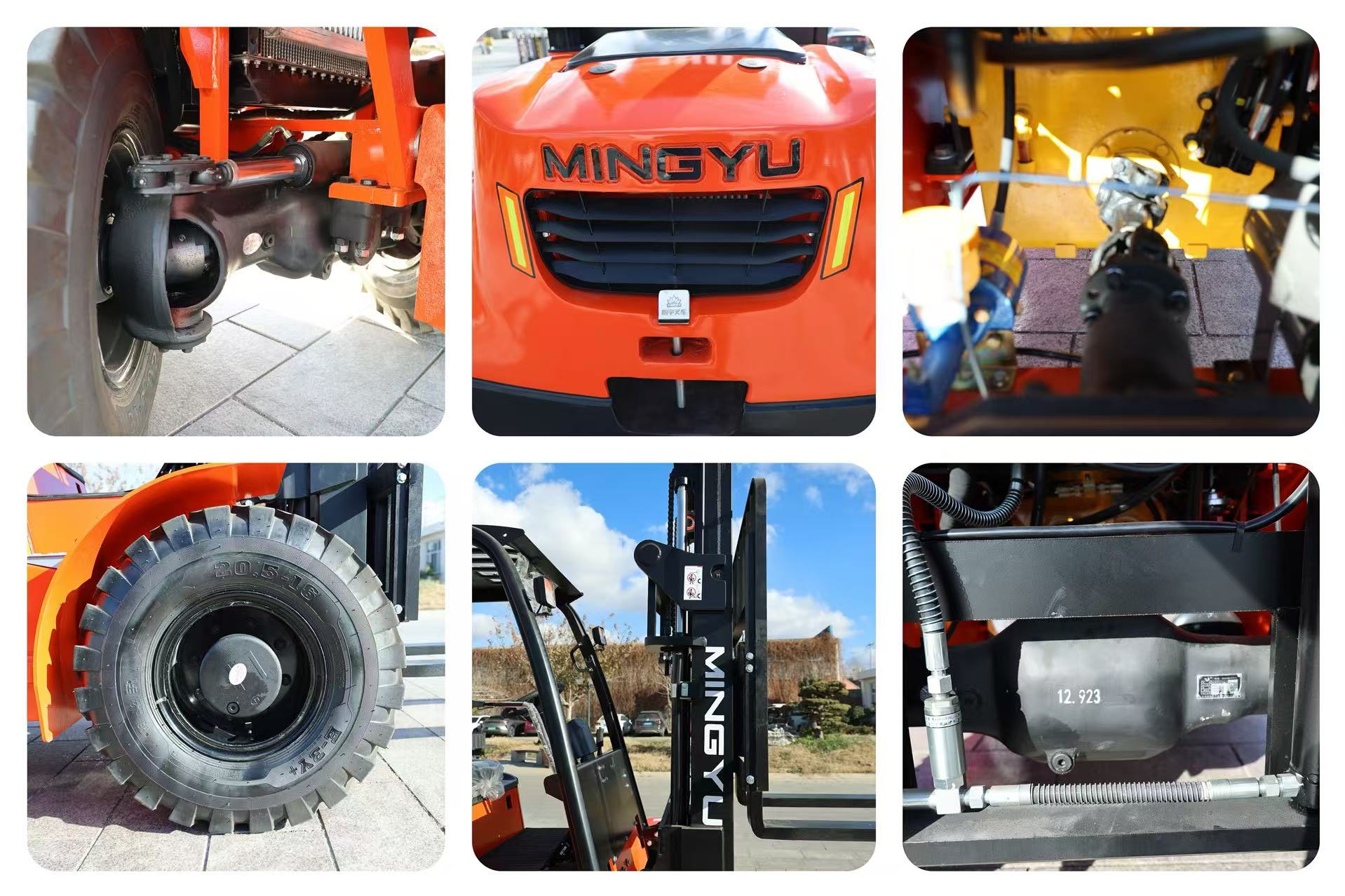

The MYZG(ZGFORKLIFT) Rough Terrain forklift comes available in 2WD and 4WD, with high clearance and wide cross-country tires. Perfect for soft or uneven yards and winter usage. 1、Higher ground clearance, the angle of the mast is up to 10°(F)/12(R),guarantee to pass well. 2、Strong power, large climbing slope, high speed, with domestic and foreign well-known brands of engine. 3、Equipped with super wide cross country tires, off-road performance is good. 4、High exhaust is standard configuration, ensure the working environment is good.
Model | CPC35 | |
Power type | diesel | |
load capacity | 3500kg | |
Load centre distance | 600mm | |
opration mode | Driving style | |
length with fork | 4535mm | |
length without fork | 3315mm | |
width | 1590mm | |
high of no-lifting | 2350mm | |
hight of roof gard | 2425mm | |
Max height during operation | 4370mm | |
wheel base | 2030mm | |
front overhang | 565mm | |
rear overhang | 720mm | |
front track width | 1260mm | |
rear track width | 1260mm | |
ground clearance | 290mm | |
lifting height | 3500mm | |
Max turning radius | 3835mm | |
Max right angle channel width | 5820mm | |
gantry inclination angle | 10/12° | |
Max lifting speed without load | 450mm/s | |
Max lifting speed with full load | 400mm/s | |
Max operating speed without load | 30Km/h | |
Max operating speed with full load | 28Km/h | |
Max climbing angel without full load | 30% | |
weight unladen | 5430Kg | |
number of wheels | 2/2 | |
tyre | pneumatic tyre | |
front tyre size | 20.5 | |
rear tyre size | 20.5 | |
Engine model | Xichai/ Quanchai/Cummins/Mitsubishi |
