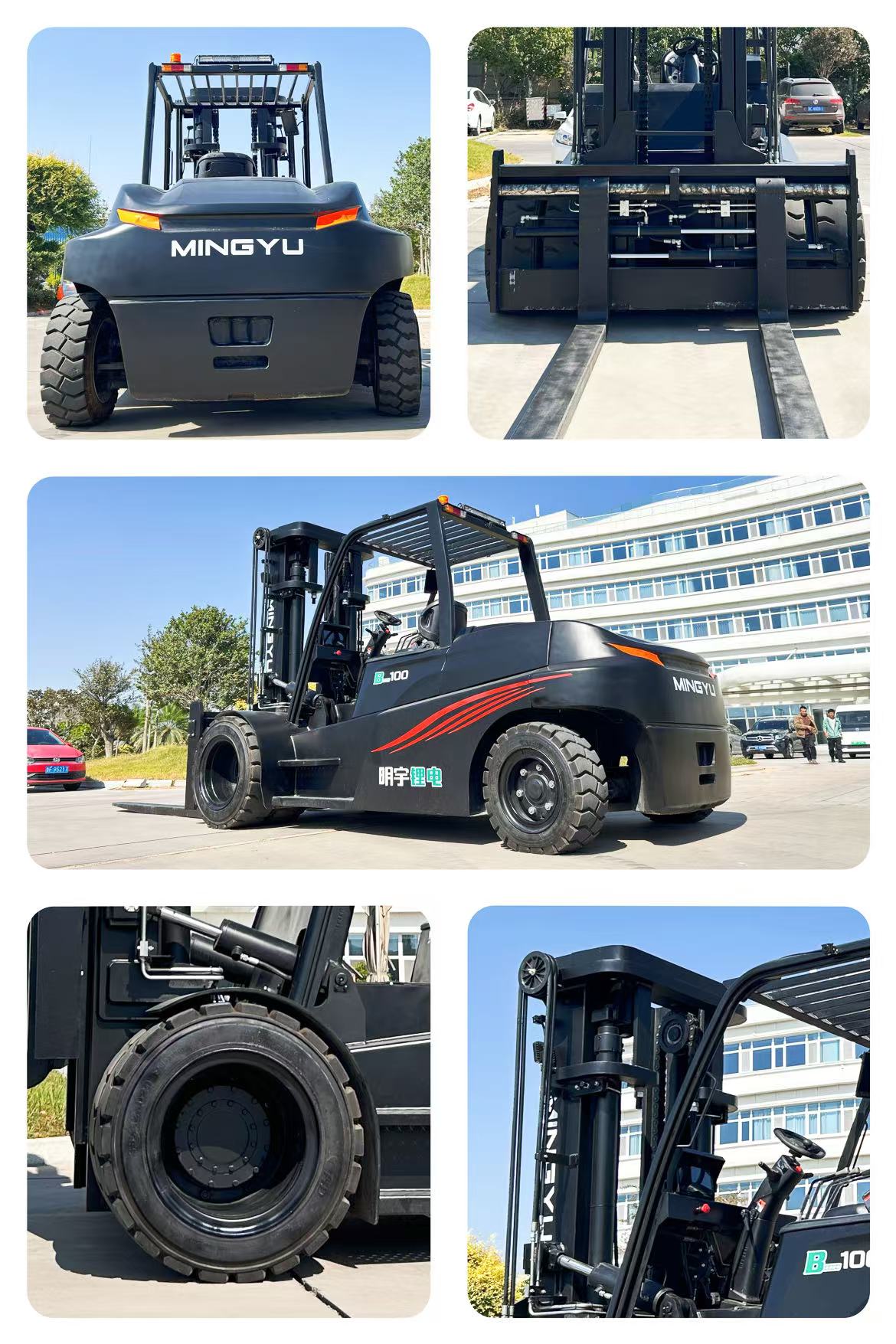

MYZG CPD100-B Electric Rough Terrain Trucks
Load Capacity
10 Ton
Power
Lithium Battery
Operating Weight
14100KG
Mini. Order
1 unit
Feature
MYZG's 10t 4-Wheel B-Series Electric Rough Terrain Trucks are high-capacity, powerful, high-performance machines, suitable for more demanding applications. With excellent visibility, many advanced comfort and productivity features as standard, and reduced total cost of ownership, these machines will give your business a boost.
Discription
| Model | B100 | |
| Power Type | accumulator | |
| rated load lifting capacity | 10000kg | |
| Load centre distance | 600mm | |
| driving style | Sit down | |
| length | with fork | 5582mm |
| without fork | 4184mm | |
| wideth | 2385mm | |
| height | Do not raise the mast height | 2814mm |
| Overhead guard height | 2488mm | |
| Max height at working | 4320mm | |
| front wheel track | 1668mm | |
| rear wheel track | 1783mm | |
| minimum ground clearance | 190mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 85mm | |
| Fork adjustment range | 400-2100mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 300mm/s | |
| Maximum lifting speed with full load | 250mm/s | |
| Maximum operating speed without load | 21Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 12% | |
| Weight unladen | 14100kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/solid tyre | |
| tyre size(front) | 36*12.5-20 | |
| tyre size(rear) | 250-15-16RP | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 614.4V/175AH | |
| drive motor power | 105KW | |
| Oil pump motor power | 63KW | |
