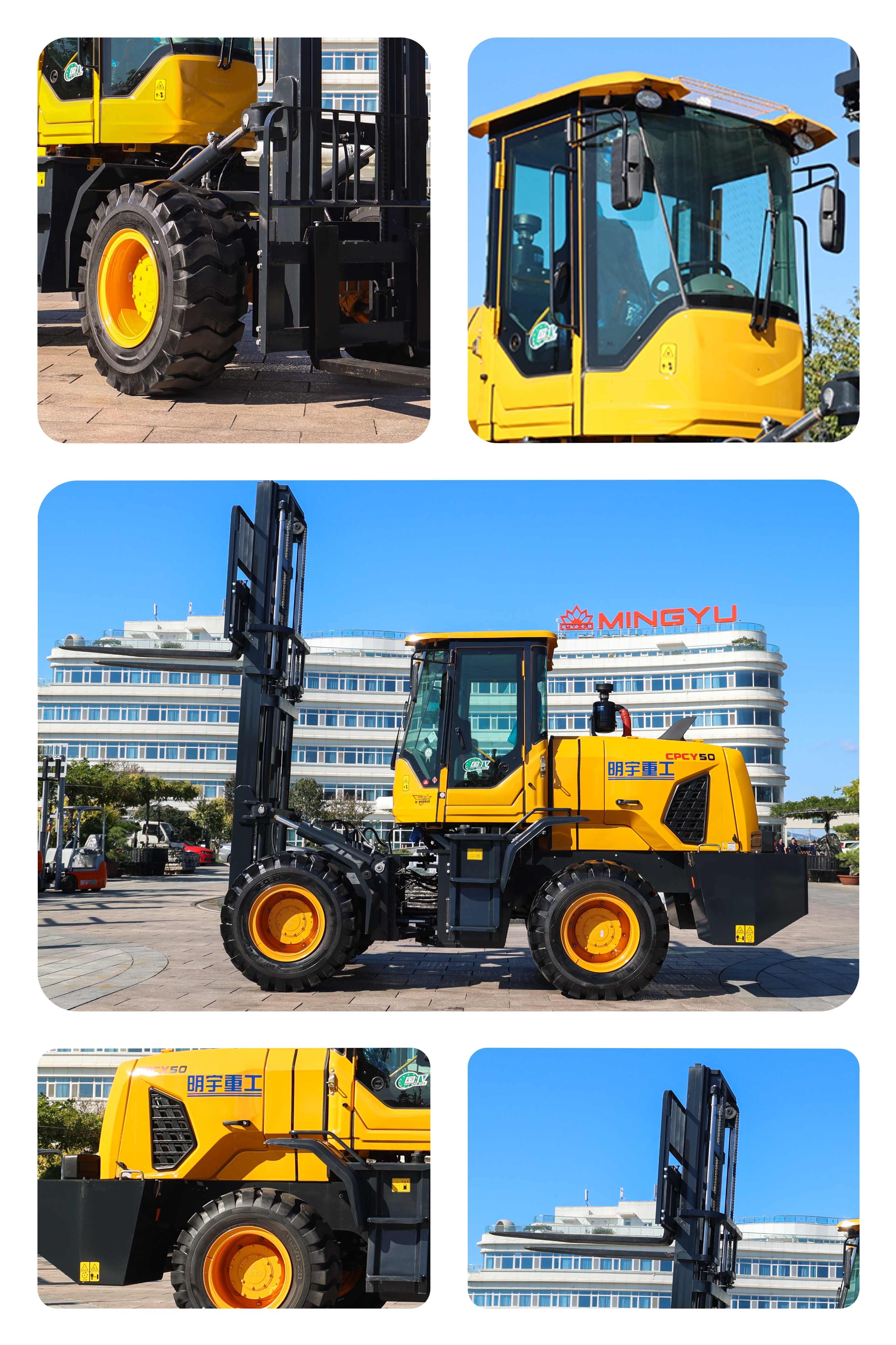

MYZG 5T Off-road forklift
rated load capacity
5000kg
weight
7000 kg
engine model
QUANCHAI /YUNNEI
Mini. Order
1 unit
Feature
The 5 ton MYZG 5T is powered by our highly efficient 74hp (55kW) QUANCHAI engine and has a 5,000lbs lift capacity. It has several mast options available so you can tailor your MYZG 5T OFF-ROAD FORKLIFT to the perfect lift height.
Discription
| rated load lifting capacity | 5000kg |
| Maximum load lifting capacity | 6000kg |
| load centre distance | 500mm |
| wheel base | 2360mm |
| total weight | 7000kg |
| Tyre type | 16/70-20 |
| Tyre distance | 1735mm |
| engine | quanchai |
| engine Power | 76kw |
| length without fork | 4750mm |
| wideth | 2120mm |
| height | 2820mm |
| minimum ground clearance | 230mm |
| Gantry angle | Front6°/rear12° |
| Standard lifting height | 3000mm |
| fork length | 120*1500 |
| minimum turning radius | 2650mm |
| Maximum operating speed | 30km/h |
| Maximum lifting speed | 300mm/s |
