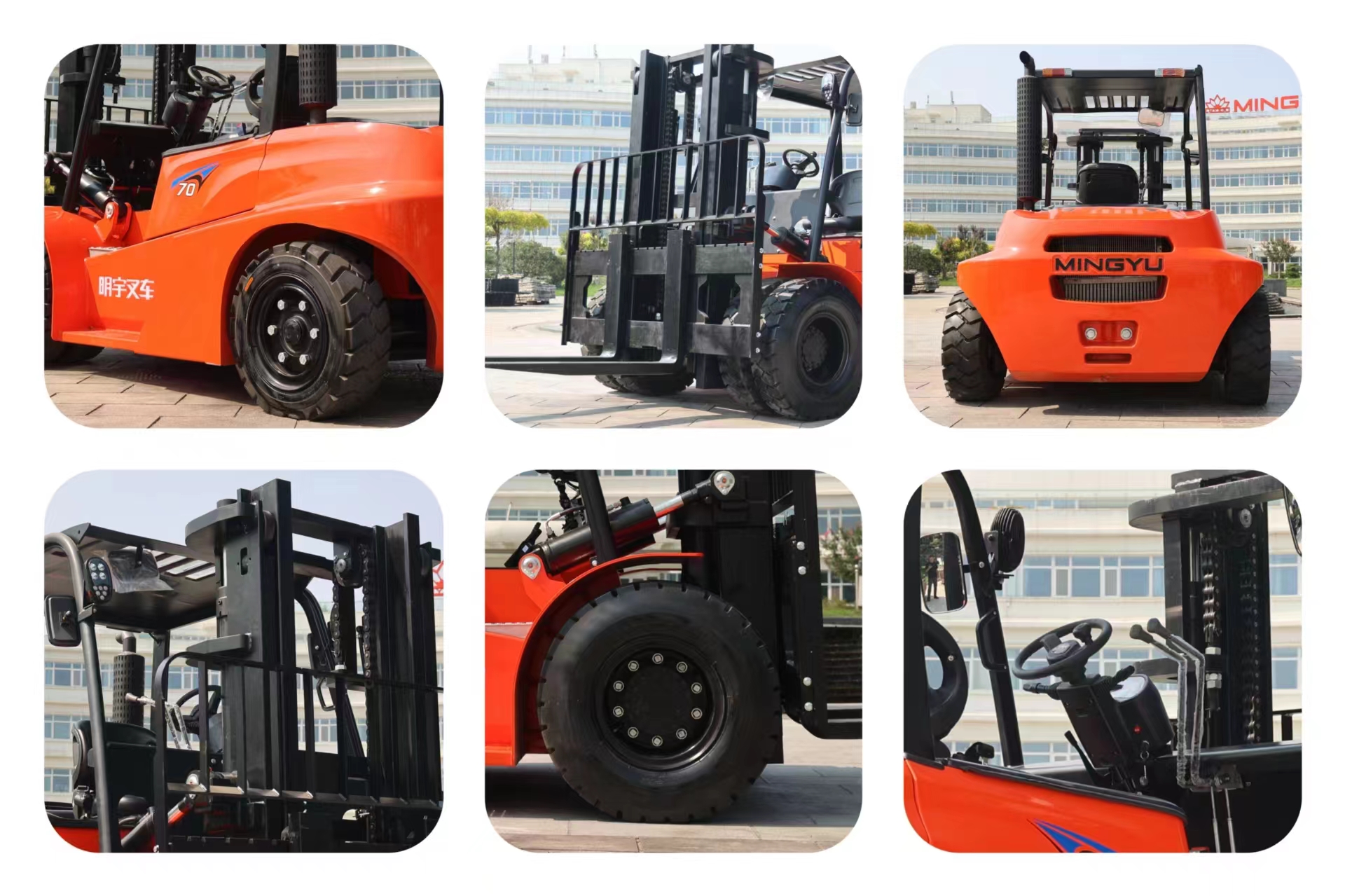

Cpc80 diesel forklift will upgrade the pressure system technology, improve the operation efficiency, lower the energy consumption of the whole machine, and the special electronic control technology jointly developed by the engine manufacturer, so that the power of the whole machine has better performance. The large air filter is adopted, which is more safe and reliable on the basis of ensuring the engine air intake; It adopts high-quality radiator, which has better heat dissipation effect. ·Can optional Xichai engine, imported Isuzu engine. ·Manual hydraulic transmission. ·Electromagnetic hydraulic transmission, Two grades 3.0m, 3.3/3.5/4.0/4.5/5.0m gantry. ·People-oriented, comfortable driving.
power type | diesel | |
rated | 8000kg | |
load centre distance | 500mm | |
driving style | sit down | |
length | with fork | 4990mm |
without fork | 3470mm | |
width | 1980mm | |
height | do not raise the mast height | 2240mm |
overhead guard height | 2380mm | |
max height at working | 4210mm | |
Distance from seat surface to top guard frame | 1070mm | |
wheel base | 2300mm | |
front overhang | 550mm | |
rear overhang | 550mm | |
front wheel track | 1500mm | |
rear wheel track | 1750mm | |
min ground clearance | 200mm | |
standard lifting height | 3000mm | |
free lifting height | 40mm | |
fork adjustment range | 300-1845mm | |
min turning radius | 3200mm |
min right-angle channel width(1100*1100 pallets) | 5050mm |
mast tilt angle (front/rear) | 6/12° |
max lifting speed without load | 380mm/s |
max lifting speed full load | 340mm/s |
max driving speed without load | 28Km/h |
max driving speed full load | 22Km/h |
max climbing angle | 20% |
overall weight | 9780Kg |
number of wheels = driving wheels/steering wheels | 2/2 |
tyre type (front/rear) | Pneumatic tyre/pneumatic tyre |
tyre size(front) | 8.25-15-16dual tires |
tyre size(rear) | 250-15-16 |
brake/driving brake | foot Brake |
parking brake | parking foot brake |
engine | Mitsubishi / Isuzu / xichai / quanchai/Cummins |
full load mass | 17780kg |
full front axle load | 14300kg |
full rear axle load | 2000kg |
fully loaded rear axle load ratio | 11.20% |
