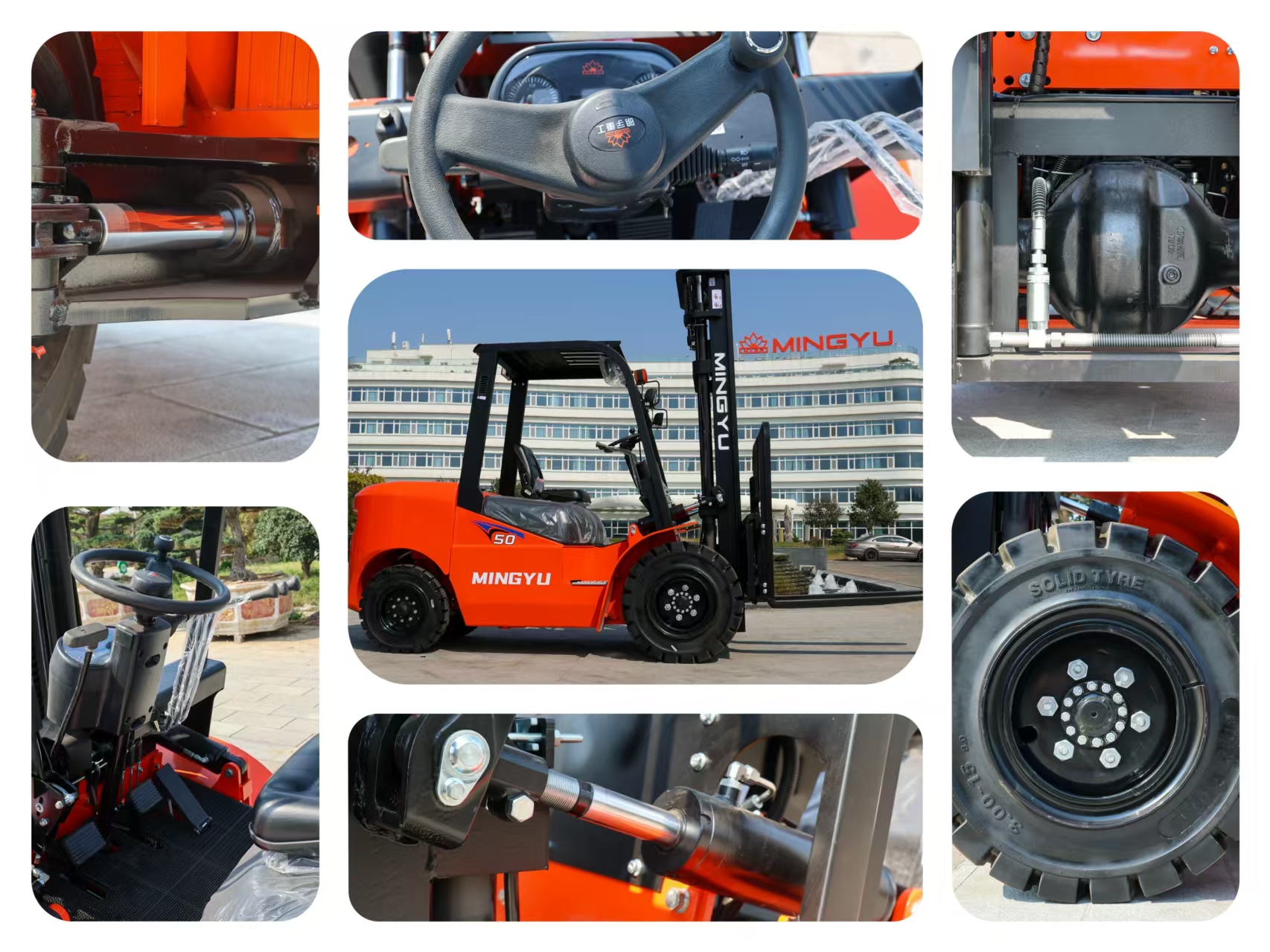

MYZG CPC50 forklift trucks are widely used in factories, warehouses, stations, wharves, ports and so on for loading, unloading and transporting of the packaged goods, besides, can be used for the handling of the bulk goods and unpackaged goods after equipping other attachments of forklift trucks. 1、With the newest appearance design method, the whole forklift has smooth profile lines, presents the dynamic effect, and meets the newest appearance design fashion. 2、With the long axle base design, the whole forklift has better longitudinal stability. At the same lifting height, compared with the original forklifts, the lifting capacity is improved by great degree. Meanwhile, the rear axle load is reduced, and the life of the steering tyres is extended. 3、With the man-machine engineering technology same to that for R series, the space for legs and boarding is larger, the operating vision is extended. The operating comfortability is greatly improved, and the fatigue strength of the operator is reduced. 4、With the thicker rear leg of the overhead guard, the engine air admission quantity is increased, the air admission resistance is reduced. The engine can conduct more sufficient combustion, and the engine life is extended.
load capacity | 5000kg |
without fork | 3055mm |
with fork | 4075mm |
Wheel width | 1380mm |
Frame width | 1370mm |
Do not raise the mast height | 2205mm |
Overhead guard height | 2215mm |
Max height at working | 4290mm |
wheel base | 1950mm |
front | 1080mm |
rear | 985mm |
No Load | 225mm |
175mm | |
Fully loaded | 220mm |
165mm | |
front overhang | 480mm |
rear overhang | 575mm |
Distance from seat surface to top guard frame | 1300mm |
Maximum lifting height without load | 3000mm |
free lifting height | 0mm |
minimum turning radius | 3250mm |
No Load | ≥300mm/s |
Fully loaded | <600mm/s |
No Load | 400mm/s |
Fully loaded | 350mm/s |
No Load | 22Km/h |
Fully loaded | 20Km/h |
Maximum climbing grade with full load | 15% |
Brake/Driving Brake | 6/12° |
weight | 5710kg |
Load centre distance | 500mm |
Tyre type (front/rear) | pneumatic tire |
front | 300-15 |
rear | 700-12 |
model | quanchai/xinchai/ Mitsubishi / Isuzu/Cummins |
