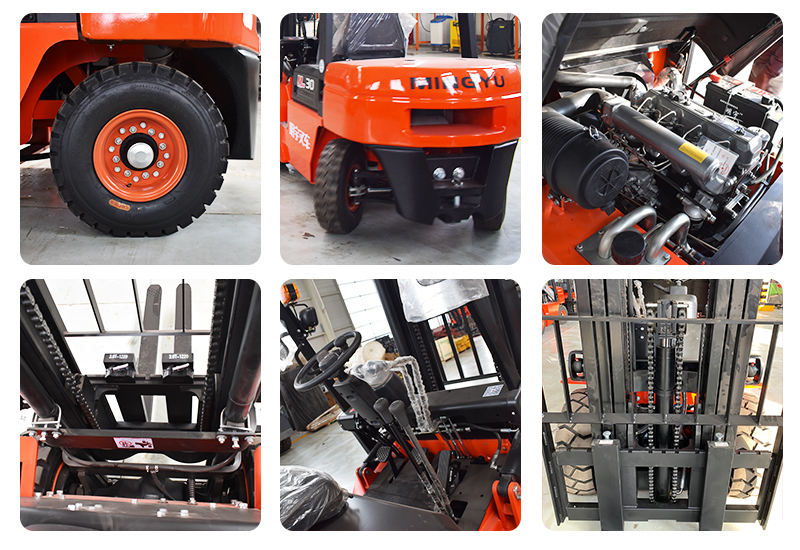

MYZG CPC38 diesel forklift

load capacity
3.8ton

power
diesel

weighht
5000kg

Mini. Order
1 unit

Feature

CPC38 forklift is a special equipment for material handling and stacking, with a maximum lifting capacity of 3.8T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used. ·Flexible and efficient operation. ·Safe and reliable, easy to use. ·Economic and environmental protection, cost saving. ·People-oriented, comfortable driving.

Discription

ModelCPC(D)38M
Power Typediesel
rated load lifting capacity3800kg
Load centre distance500mm
driving styleSit down
lengthwith fork4120mm
without fork2945mm
wideth1228mm
heightDo not raise the mast height2140mm
Overhead guard height2100mm
Max height at working4262mm
Distance from seat surface to top guard frame970mm
wheel base1900mm
front overhang457mm
rear overhang550mm
front wheel track1000mm
rear wheel track980mm
minimum ground clearance165mm
Standard lifting height3000mm
free lifting height70mm
Fork adjustment range260-1100mm
minimum turning radius2550mm
Minimum right-angle channel width(1100*1100 pallets)4307mm
Gantry angle (front/rear)6/12°
Maximum lifting speed without load480mm/s
Maximum lifting speed with full load360mm/s
Maximum operating speed without load20Km/h
Maximum operating speed with full load20Km/h
Max gradeability with full loading20%
Weight unladen4900kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Pneumatic tyre/pneumatic tyre
tyre size(front)28x9-15
tyre size(rear)6.50-10
Brake/driving brakeFoot Brake
parking brakeHand Brake
Engine
quanchai/xinchai/

Mitsubishi / Isuzu/Cummins

rated power39kw
rated speed2650r/min
