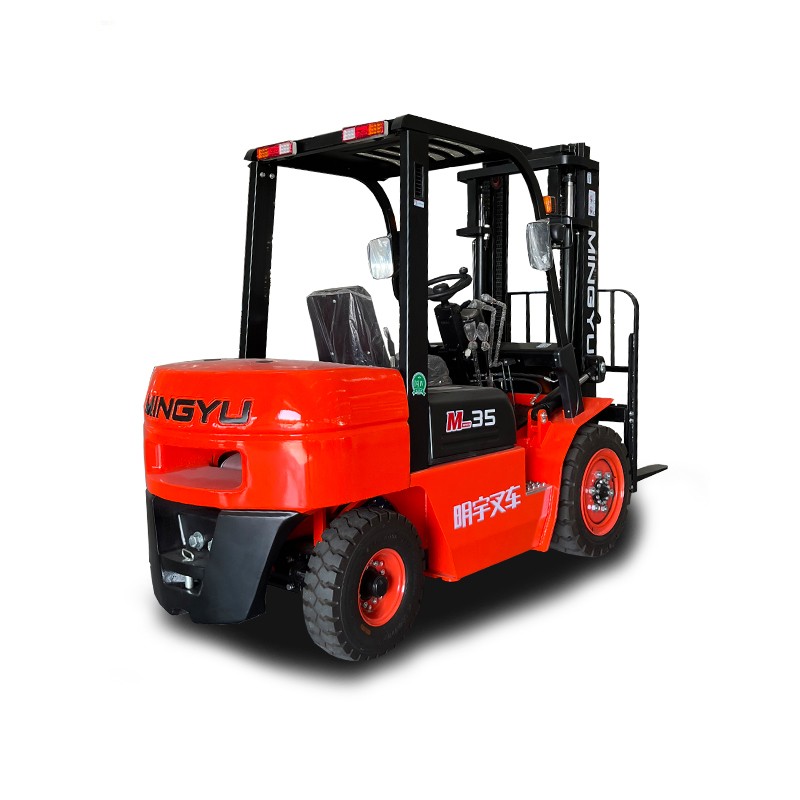

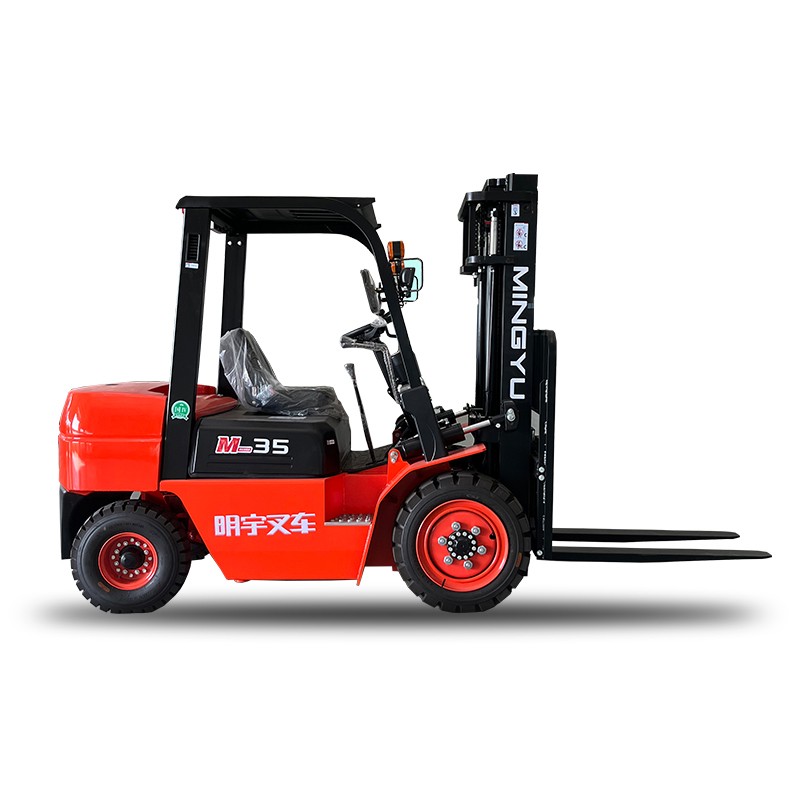

MYZG CPC35 forklift

Rated load capacity
3500kg

weight
4750kg

Standard lifting height
3000mm

Mini. Order
1 unit

Feature

CPC35 is a special equipment for material handling and stacking, with a maximum lifting capacity of 3.5T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used. New CPC35 series diesel forklift is the key product which MYZG blockbuster launches. Based on the high technology, mass manufacturing capability and experienced sales and services of MYZG, new H series becomes a milestone of MYZG’s products which fully consider the needs of market and customers.

Discription

ModelCPC(D)35M
Power Typediesel
rated load lifting capacity3500kg
Load centre distance500mm
driving styleSit down
lengthwith fork3890mm
without fork2715mm
wideth1228mm
heightDo not raise the mast height2140mm
Overhead guard height2100mm
Max height at working4262mm
Distance from seat surface to top guard frame970mm
wheel base1700mm
front overhang457mm
rear overhang520mm
front wheel track1000mm
rear wheel track980mm
minimum ground clearance165mm
Standard lifting height3000mm
free lifting height70mm
Fork adjustment range260-1100mm
minimum turning radius2520mm
Minimum right-angle channel width(1100*1100 pallets)4277mm
Gantry angle (front/rear)6/12°
Maximum lifting speed without load480mm/s
Maximum lifting speed with full load370mm/s
Maximum operating speed without load20Km/h
Maximum operating speed with full load20Km/h
Max gradeability with full loading20%
Weight unladen4465kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Pneumatic tyre/pneumatic tyre
tyre size(front)28x9-15
tyre size(rear)6.50-10
Brake/driving brakeFoot Brake
parking brakeHand Brake
Engine
quanchai/xinchai/

Mitsubishi / Isuzu/Cummins

rated power39kw
rated speed2650r/min
fork length1220mm
