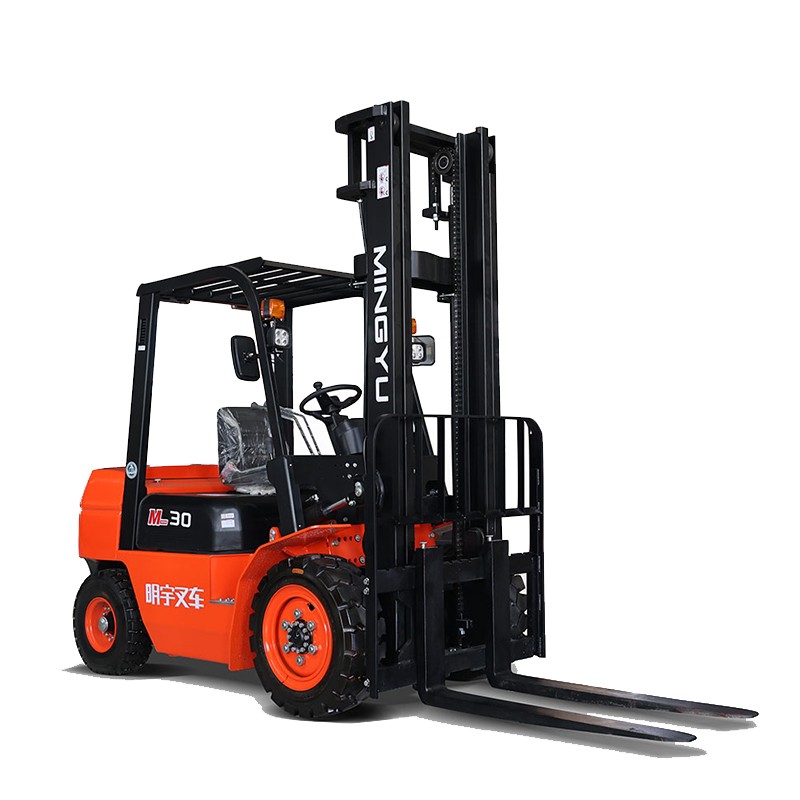

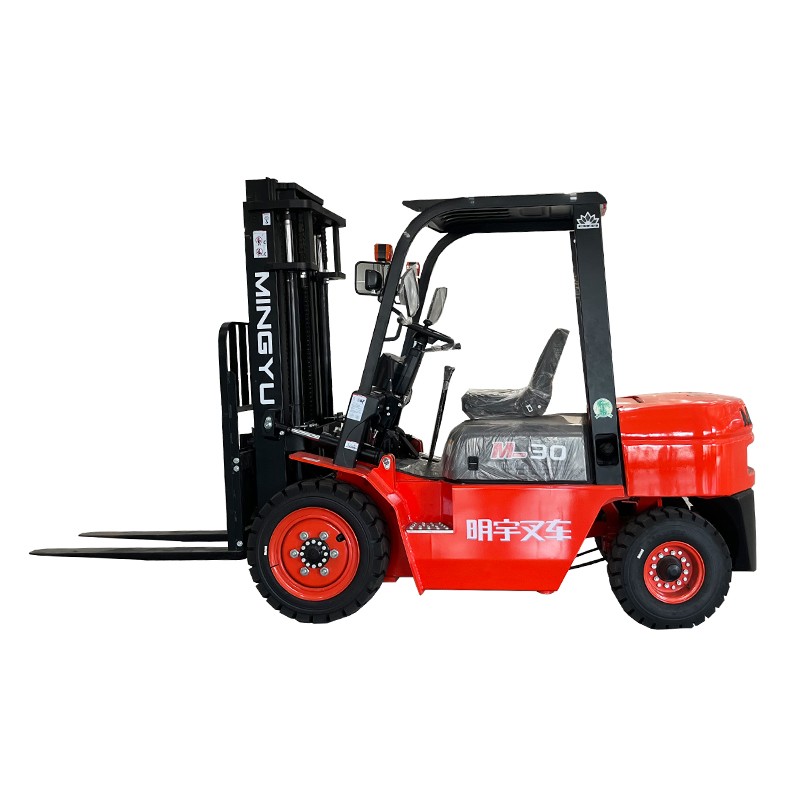

MYZG CPC30 diesel forklift

Rated load capacity
3000kg

Total weight
4350kg

Standard lifting height
3000mm

Mini. Order
1 unit

Feature

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. MINGYU forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier, ·Flexible and efficient operation. ·Safe and reliable, easy to use. ·Economic and environmental protection, cost saving. ·People-oriented, comfortable driving. ·Toyota seat.

Discription

ModelCPC(D)30M
Power Typediesel
rated load lifting capacity3000kg
Load centre distance500mm
driving styleSit down
lengthwith fork3870mm
without fork2695mm
wideth1228mm
heightDo not raise the mast height2140mm
Overhead guard height2100mm
Max height at working4262mm
Distance from seat surface to top guard frame970mm
wheel base1700mm
front overhang457mm
rear overhang500mm
front wheel track1000mm
rear wheel track980mm
minimum ground clearance165mm
Standard lifting height3000mm
free lifting height65mm
Fork adjustment range260-1100mm
minimum turning radius2520mm
Minimum right-angle channel width(1100*1100 pallets)4277mm
Gantry angle (front/rear)6/12°
Maximum lifting speed without load480mm/s
Maximum lifting speed with full load440mm/s
Maximum operating speed without load20Km/h
Maximum operating speed with full load20Km/h
Max gradeability with full loading20%
Weight unladen4290kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Pneumatic tyre/pneumatic tyre
tyre size(front)28x9-15
tyre size(rear)6.50-10
Brake/driving brakeFoot Brake
parking brakeHand Brake
Enginequanchai/xinchai/Mitsubishi / Isuzu/Cummins
rated power39kw
rated speed2650r/min
