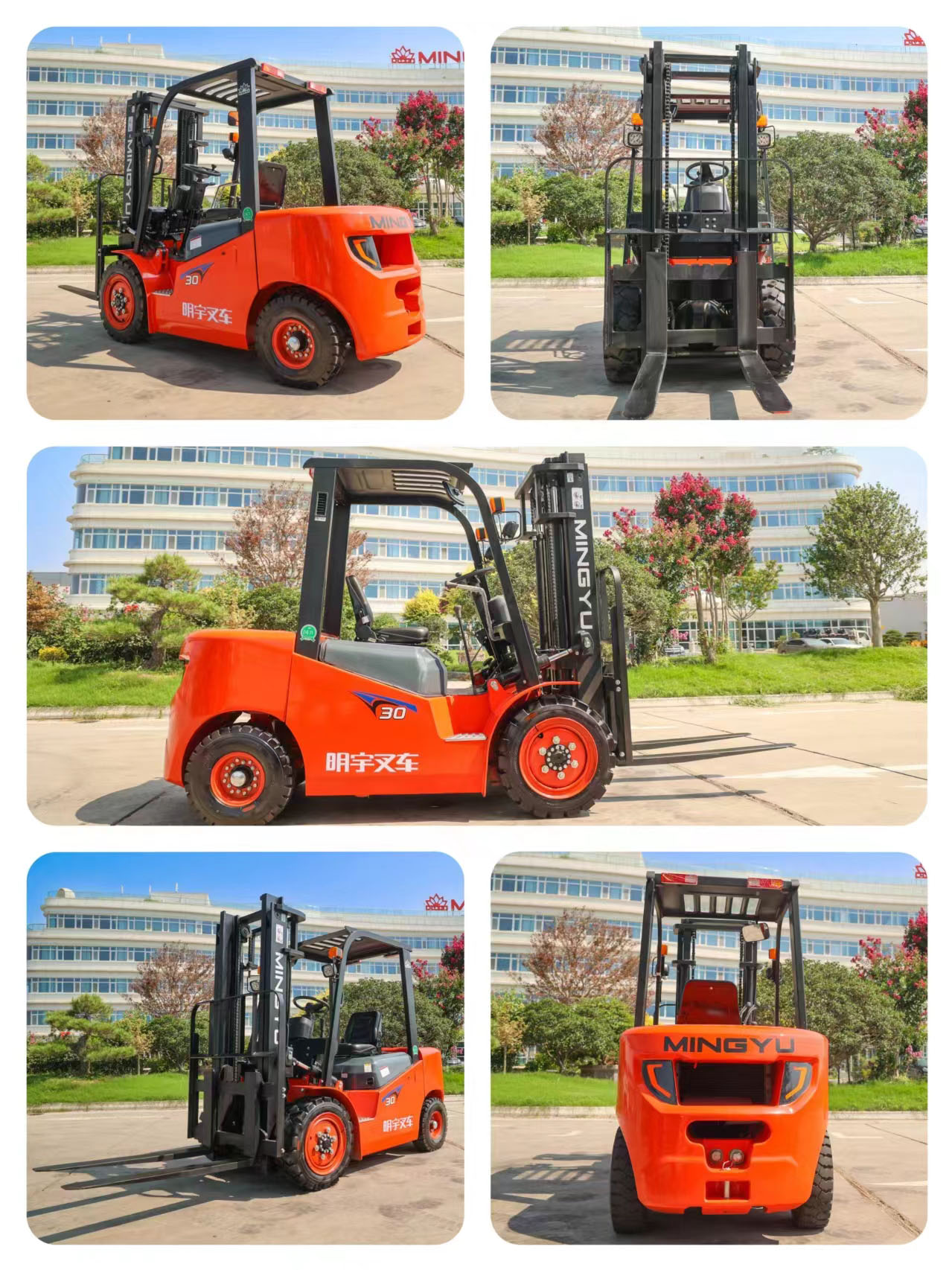

The k2 series is a series of forklifts of Mingyu based on the advanced technology through comprehensive upgrading of the exterior design, green and energy efficiency, safety and reliability, comfort and convenience. The forklifts have greatly improved performance, capable of meeting your all-round needs. 1、Adopt technologys that superior to Toyota,The LED lighting system is provided in the entire forklift, which can save energy and power and greatly improve the performance and service life of lights. 2、The semi-enclosed instrument console make the entire forklift look compact and stylish. 3、Enlarged boarding step space allows more convenience for boarding. 4、The wide-open hood, increasing maintenance space by 10%. 5、The optimized heat dissipation system,improved counterweight heatdissipation channel and reduced windresistance of the radiator enable thecooling efficiency to rise by 10%. 6、Large-screen LED instrument newlydeveloped. which can completely displayinformation such as the running statusof the vehicle, fault detection andmaintenance reminder in front of thedriver more intuitively and can improvethe convenience of maintenance.
Model | CPC(D)30K | |
Power Type | diesel | |
rated load lifting capacity | 3000kg | |
Load centre distance | 500mm | |
driving style | Sit down | |
length | with fork | 3925mm |
without fork | 2850mm | |
wideth | 1225mm | |
height | Do not raise the mast height | 2140mm |
Overhead guard height | 2110mm | |
Max height at working | 4262mm | |
Distance from seat surface to top guard frame | 970mm | |
wheel base | 1810mm | |
front overhang | 441mm | |
rear overhang | 549mm | |
front wheel track | 1000mm | |
rear wheel track | 980mm | |
minimum ground clearance | 165mm | |
Standard lifting height | 3000mm | |
free lifting height | 65mm | |
Fork adjustment range | 260-1100mm | |
minimum turning radius | 2520mm | |
Minimum right-angle channel width(1100*1100 pallets) | 4277mm | |
Gantry angle (front/rear) | 6/12° | |
Maximum lifting speed without load | 480mm/s | |
Maximum lifting speed with full load | 440mm/s | |
Maximum operating speed without load | 20Km/h | |
Maximum operating speed with full load | 20Km/h | |
Max gradeability with full loading | 20% | |
Weight unladen | 4190Kg | |
Number of wheels = driving wheels/steering wheels | 2/2 | |
Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
tyre size(front) | 28x9-15 | |
tyre size(rear) | 6.50-10 | |
Brake/driving brake | Foot Brake | |
parking brake | Hand Brake | |
Engine | quanchai/xinchai/ Mitsubishi / Isuzu/Cummins | |
rated power | 39/40kw | |
Oil pump motor power | 2650r/min | |
fork length | 1220mm |
