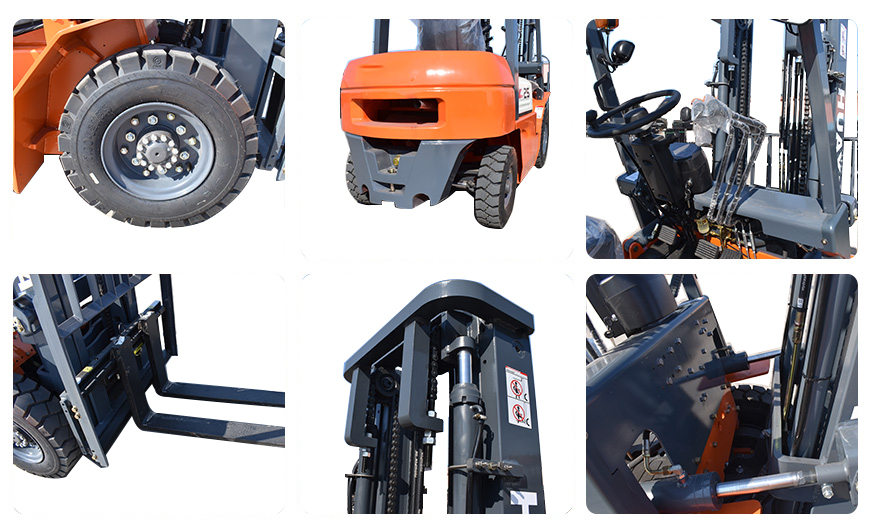

CPC25 is a special equipment for material transporting and stacking, with a max lifting capacity of 2.5T and a standard height of 3m, which can also be increased. The diesel forklift product can be installed with sideshifter, flexible and efficient, wide range of uses. ·Flexible and efficient operation. ·Safe and reliable, easy to use. ·Economic and environmental protection, cost saving. ·People-oriented, comfortable driving. ·Toyota seat.
model | CPC25 | |
Power type | diesel | |
load capacity | 2500kg | |
Load centre distance | 500mm | |
lifting height | 3000mm | |
free lifting height | 0 | |
fork size | lenght×width×thickness | 1070×122×40mm |
Mast tilt angle | front/rear | 6/12Deg |
min turning radius | 2240mm | |
min ground clearance | mast | 120mm |
frame | 130mm | |
Overhead guard height | 2160mm | |
front overhang distance | 450mm | |
Max driving speed | 19km/h | |
Max lifting speed | 500mm/s | |
max drawbar pull | 18KW | |
Max climbing capacity | 20% | |
length | with fork | 3650mm |
without fork | 2580mm | |
width | 1160mm | |
Max lifting height of fork (with stopper shelf) | 4220mm | |
Landing height of the gantry | 2060mm | |
tyre | front | 7.00-12-12PR |
rear | 6.00-9-10PR | |
wheek base | 1600mm | |
wheel track | front/rear | 970/970mm |
weight | without load | 3880 |
accumulator | voktage/capacity | 12/80 |
engine | model | quanchai/xinchai/ Mitsubishi / Isuzu/Cummins |
rated power | 40kw | |
rated torque | 156/1700-1900 | |
Bore X Stroke | 90×105mm | |
number of cylinders | 4 | |
displacement | 2.54L | |
fuel tank capacity | 60L |
