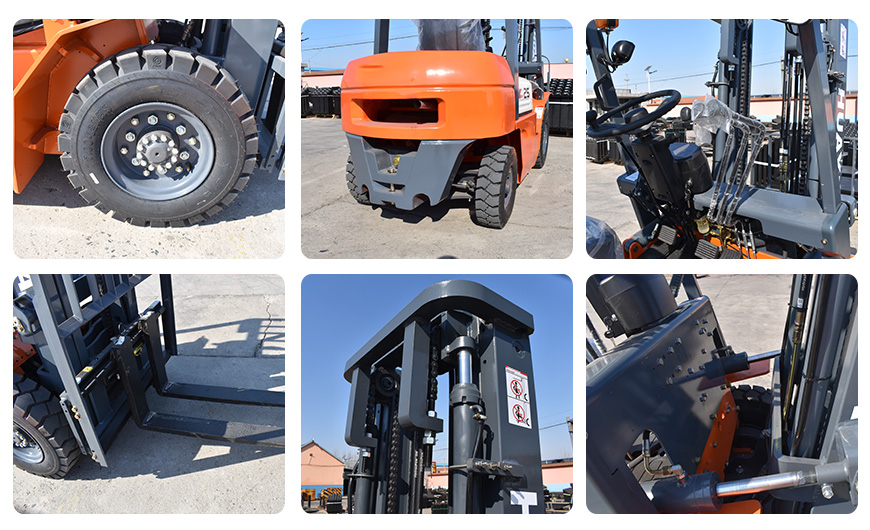

The CPC20 series is a series of forklifts of mingyu based on the advanced technology through comprehensive upgrading of the exterior design, green and energy efficiency, safety and reliability, comfort and convenience. The diesel forklifts have greatly improved performance, capable of meeting your all-round needs. · The semi-enclosed instrument console make the entire forklift look compact and stylish. · Enlarged boarding step space allows more convenience for boarding. · The wide-open hood, increasing maintenance space by 10%. · The optimized heat dissipation system, improved counterweight heat dissipation channel and reduced wind resistance of the radiator enable the cooling efficiency to rise by 10%. · Large-screen LED instrument newly developed, which can completely display information such as the running status of the vehicle, fault detection and maintenance reminder in front of the driver more intuitively and can improve the convenience of maintenance. ·Toyota seat.
model | CPC20 | |
Power type | diesel | |
load capacity | 2000kg | |
Load centre distance | 500mm | |
lifting height | 3000mm | |
free lifting height | 0 | |
fork size | lenght×width×thickness | 1070×122×40mm |
Mast tilt angle | front/rear | 6/12Deg |
min turning radius | 2190mm | |
min ground clearance | mast | 120mm |
frame | 130mm | |
Overhead guard height | 2160mm | |
front overhang distance | 450mm | |
Max driving speed | 19km/h | |
Max lifting speed | 500mm/s | |
max drawbar pull | 17KW | |
Max climbing capacity | 20% | |
length | with fork | 3600mm |
without fork | 2530mm | |
width | 1160mm | |
Max lifting height of fork (with stopper shelf) | 4220mm | |
Landing height of the gantry | 2060mm | |
tyre | front | 7.00-12-12PR |
rear | 6.00-9-10PR | |
wheek base | 1600mm | |
wheel track | front/rear | 970/970mm |
weight | without load | 3530 |
accumulator | voktage/capacity | 12/80 |
engine | model | quanchai/xinchai/ Mitsubishi / Isuzu/Cummins |
rated power | 40kw | |
rated torque | 156/1700-1900 | |
Bore X Stroke | 90×105mm | |
number of cylinders | 4 | |
displacement | 2.54L | |
fuel tank capacity | 60L | |
gear (front/rear) | 2/2Manual shift |
