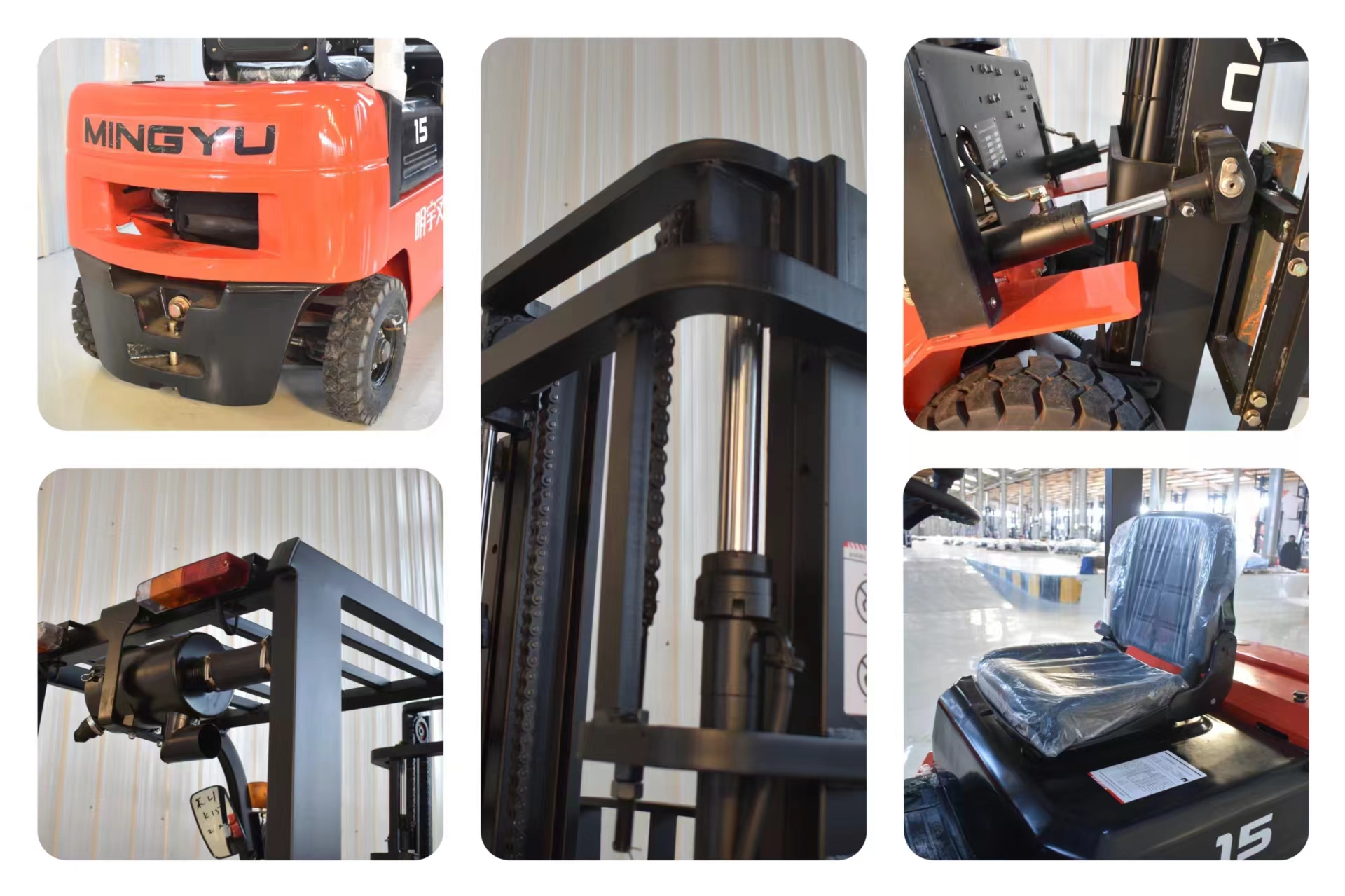

CPC15 series is the key product which MINGYU blockbuster launches. Based on the high technology,mass manufacturing capability and experienced sales and services of mingyu, cpc series becomes a milestone of mingyu’s products which fully consider the needs of market and customer. Dependable, durable and engineered with ergonomics in mind, the Core diesel Forklift can maneuver nearly any typical material handling load. With a lift capacity range of 1500 lbs, the Toyota seat,Pneumatic forklift is the premier material handling solution for most outdoor applications.Additionally, this lift comes equipped with high-performance pneumatic tires that provide a reassuringly strong grip on uneven surfaces.
model | CPC15 | ||
Power type | diesel | ||
load capacity | 1500kg | ||
Load centre distance | 500mm | ||
lifting height | 3000mm | ||
free lifting height | 100 | ||
fork size | lenght×width×thickness | 920×100×35mm | |
Mast tilt angle | front/rear | 6/12Deg | |
min turning radius | 1955mm | ||
min ground clearance | 110mm | ||
Overhead guard height | 2070mm | ||
front overhang distance | 425mm | ||
Max driving speed | load | 13.5km/h | |
Max lifting speed | load | 590mm/s | |
max drawbar pull | load | 12.3KW | |
Max climbing capacity | 20% | ||
length | with fork | 3260mm | |
without fork | 2205mm | ||
width | 1070mm | ||
Max lifting height of fork (with stopper shelf) | 3000mm | ||
Landing height of the gantry | 1865mm | ||
tyre | front | 6.50-10-10PR | |
rear | 5.00-8-8PR | ||
wheek base | 1410mm | ||
wheel track | front/rear | 890/920mm | |
weight | without load | 2660 | |
accumulator | voktage/capacity | 12/80 | |
engine | model | quanchai/xinchai/ Mitsubishi / Isuzu/Cummins | |
rated power | 30/2600 | ||
rated torque | 131/1700-1900 | ||
Bore X Stroke | 80x100mm | ||
number of cylinders | 4 | ||
displacement | 2.27L | ||
fuel tank capacity | 40L |
