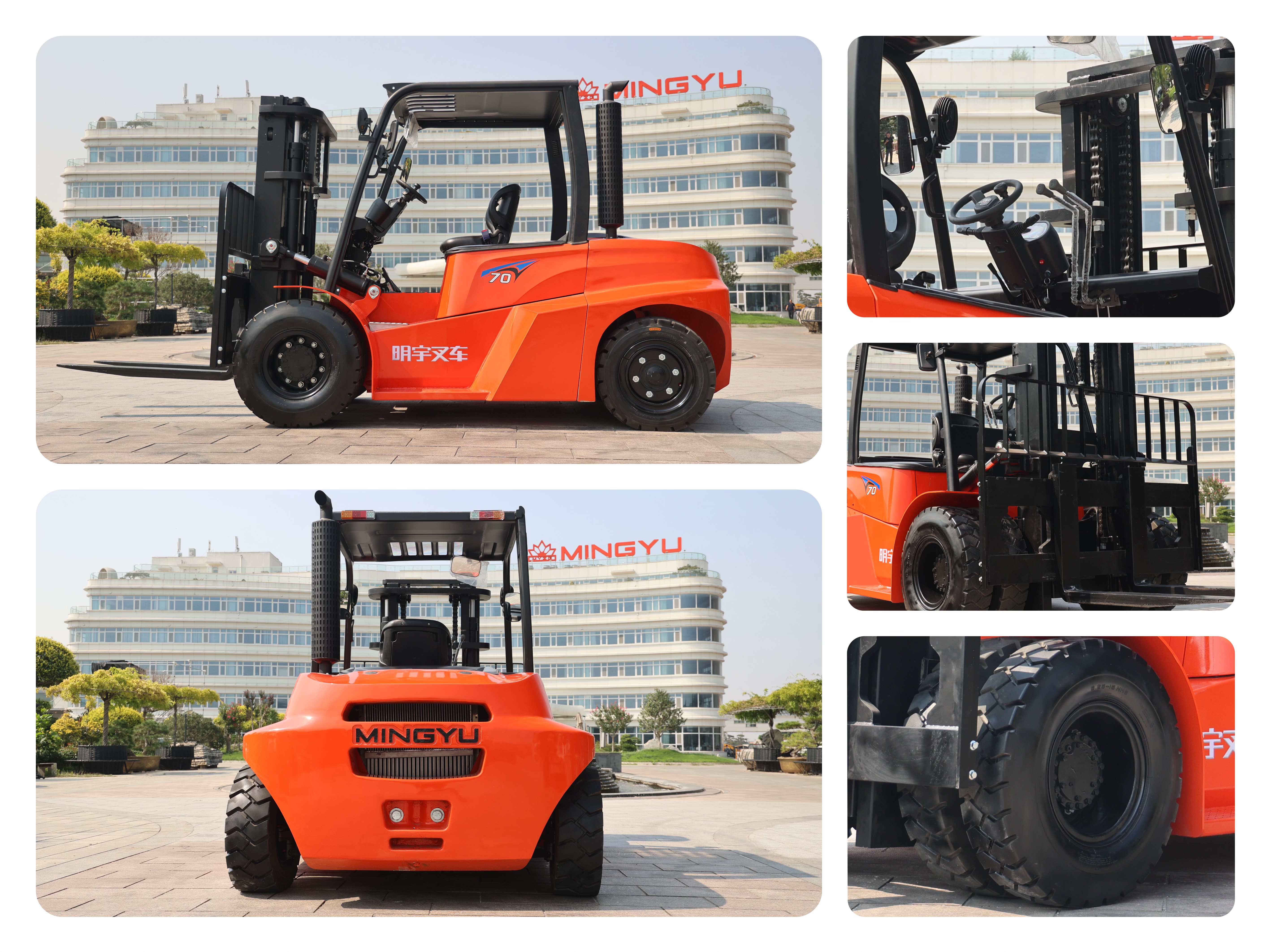

MYZG perform a new design for it, and make this type trucks not only can provide exceptional comfort and safety, but also more durable. (1)The suspended engine and transmission can effectively reduce the vibration which transmitted to the operating system, and can improve the level of driver fatigue significantly . The suspended type cab, compared with the H series, reduce vehicle vibration 30% (2) Reducing the distance between double handle switch and steering wheel. Control handle is disposed in the comfortable position. Comprehensive dashboard is easy to read, including coolant temperature, fuel gauge, preheat instruction. Optimized pedal system; The brake pedal is widened. Spacious legroom and footsteps space. Multifunctional suspended seat increase the support of the driver, and reduce vibration, and adjust driver's weight balance, and adjust front and rear tilt, and have eat tool bag and seat belt. Steering wheel adjusting mechanism is disposed appropriate position which is easy to adjust . It is reliable and secure. The range of steering wheel adjustment is 9 degrees forward and backward. The cover completely have been sealed between the cab and the engine cabinet, and it reduce driver's ear noise effectively.
Fuel type | diesel | overall leghth with fork | 4800mm |
Rated load capacity | 7000kg | overall leghth without fork | 3580mm |
Load Center | 600mm | overall width | 1995mm |
Lifting height | 3000mm | Overall lifting height of mast | 4420mm |
Free lifting height | 200mm | Mast Lowered Height | 2625mm |
Fork size | 1220×150×65mm | tyre front | 8.25-15-14PR |
Mast tilt Angle front and rear | 6/12Deg. | tyre rear | 8.25-15-14PR |
min turning radius | 3380mm | wheel base | 2250mm |
ground clearance | 200mm | wheel track | 1470/1700mm |
Height of roof guard from ground | 2460mm | overall weight | 9350kg |
front overhang | 590mm | battery | (12/100)×2 V/Ah |
Max driving speed full load | 29km/h | engine type | Mitsubishi / Isuzu / xichai / quanchai |
Max lifting speed full load | 500mm/s | Starting rated power | 85kw |
Max traction full load | 53KN | transmission | hydraulic |
Max climbing angle | 20(%) | working pressure | 20Mpa |
