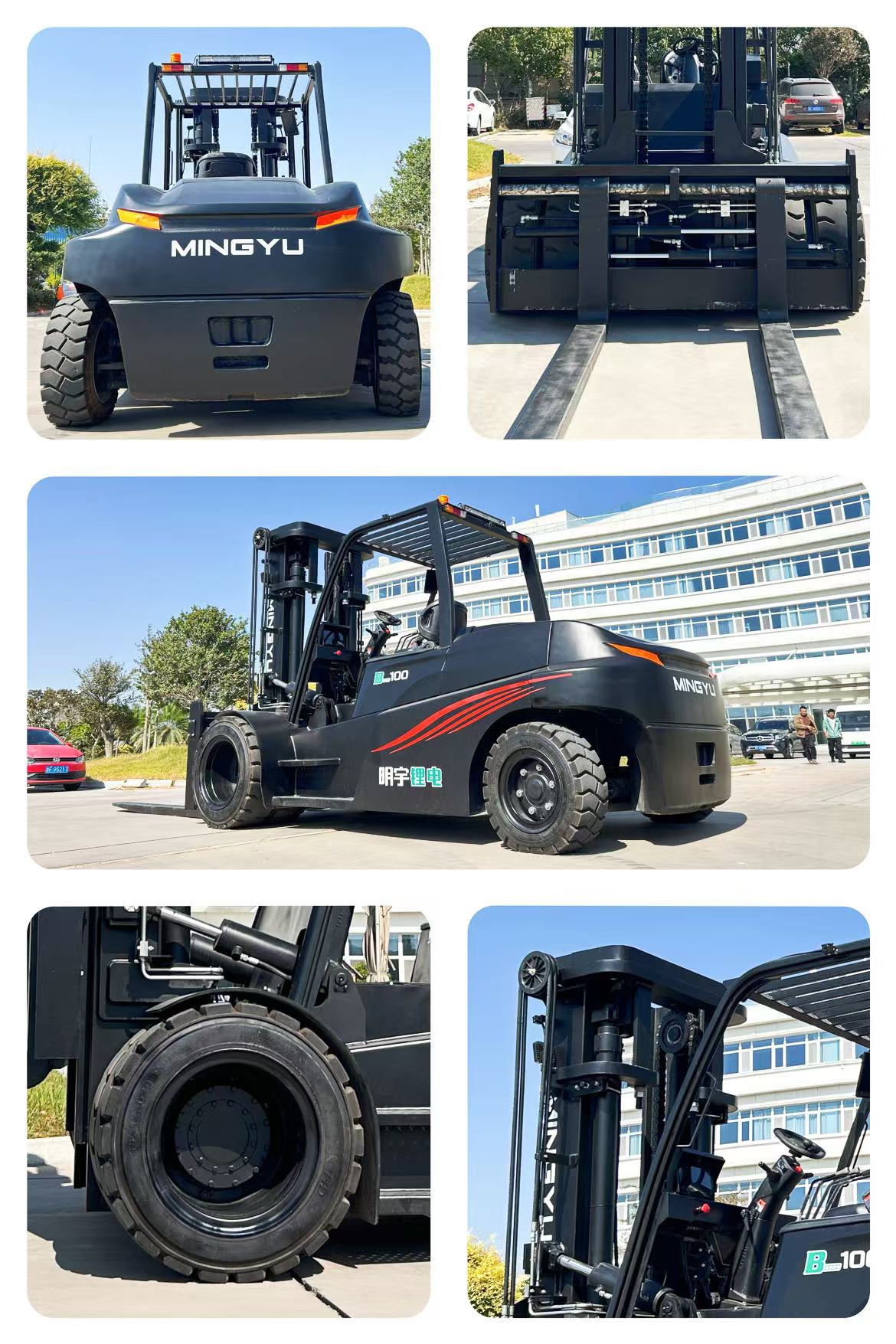

MYZG's 10t 4-Wheel B-Series electric forklifts are high-capacity, powerful, high-performance machines, suitable for more demanding applications. With excellent visibility, many advanced comfort and productivity features as standard, and reduced total cost of ownership, these machines will give your business a boost. 1、The steering column is adjustable in vertical and horizontal directions according to the driver’s preference and comfort. 2、The thick and large rubber floor mat, rounded hood, and spacious legroom offer great comfort to the operator. 3、The full-suspension (air suspension optional) comfort seat is fully adjustable to accommodate all individual preferences. 4、Easy to hop on and off thanks to the high headroom, the operator has a very spacious operator space at his disposal. 5、Thanks to the large glass around the operator. The high visibility makes driving a forklift with a load safer and contributes to even better productivity and driving experiences. 6、All main components below the cabin make it easy to access, enabling easy service.
Model | B100 | |
Power Type | accumulator | |
rated load lifting capacity | 10000kg | |
Load centre distance | 600mm | |
driving style | Sit down | |
length | with fork | 5582mm |
without fork | 4184mm | |
wideth | 2385mm | |
height | Do not raise the mast height | 2814mm |
Overhead guard height | 2488mm | |
Max height at working | 4320mm | |
front wheel track | 1668mm | |
rear wheel track | 1783mm | |
minimum ground clearance | 190mm | |
Standard lifting height | 3000mm | |
free lifting height | 85mm | |
Fork adjustment range | 400-2100mm | |
Gantry angle (front/rear) | 5/10° | |
Maximum lifting speed without load | 300mm/s | |
Maximum lifting speed with full load | 250mm/s | |
Maximum operating speed without load | 21Km/h | |
Maximum operating speed with full load | 20Km/h | |
Max gradeability with full loading | 12% | |
Weight unladen | 14100kg | |
Number of wheels = driving wheels/steering wheels | 2/2 | |
Tyre type (front/rear) | Pneumatic tyre/solid tyre | |
tyre size(front) | 36*12.5-20 | |
tyre size(rear) | 250-15-16RP | |
Brake/driving brake | Foot Brake | |
parking brake | Hand Brake | |
Battery voltage/capacity | 614.4V/175AH | |
drive motor power | 105KW | |
Oil pump motor power | 63KW |
