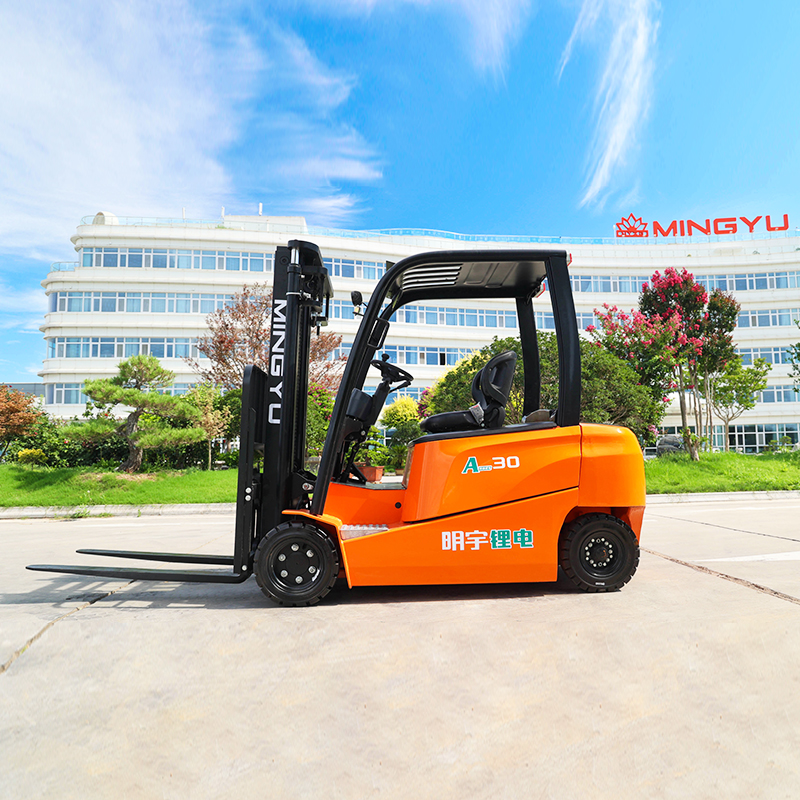

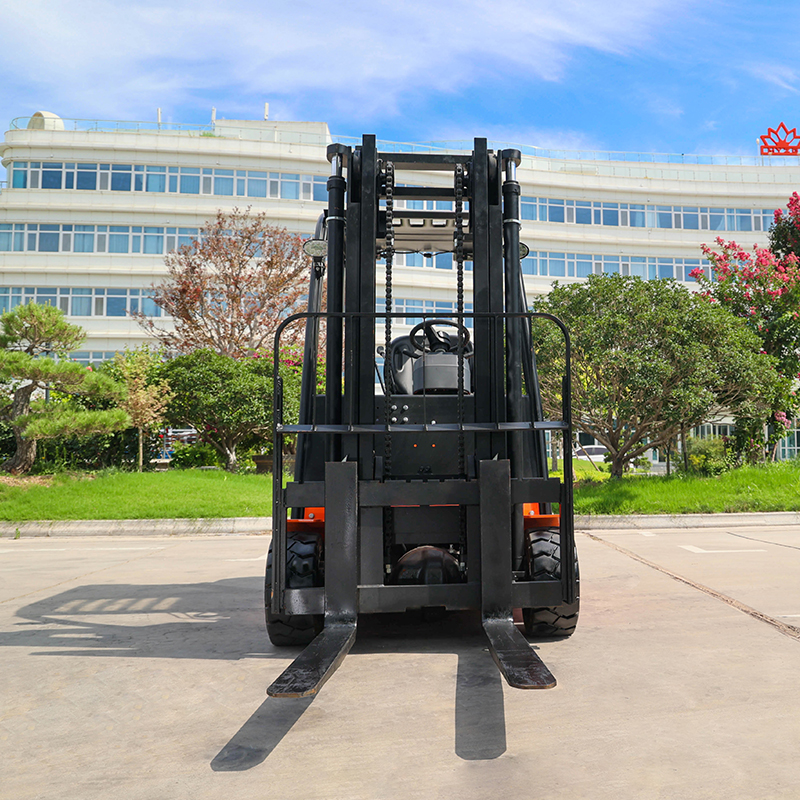

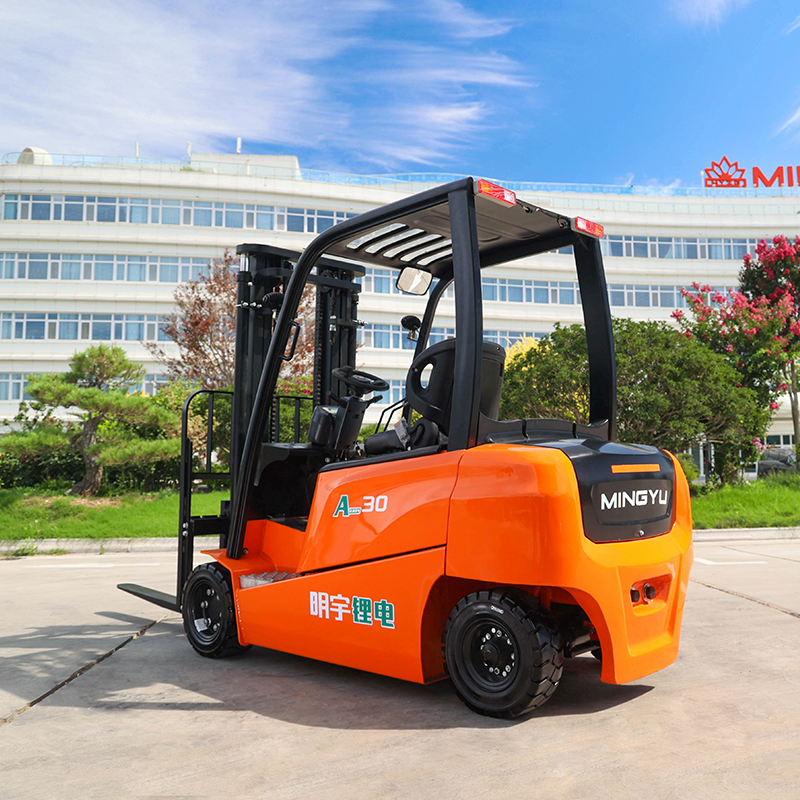

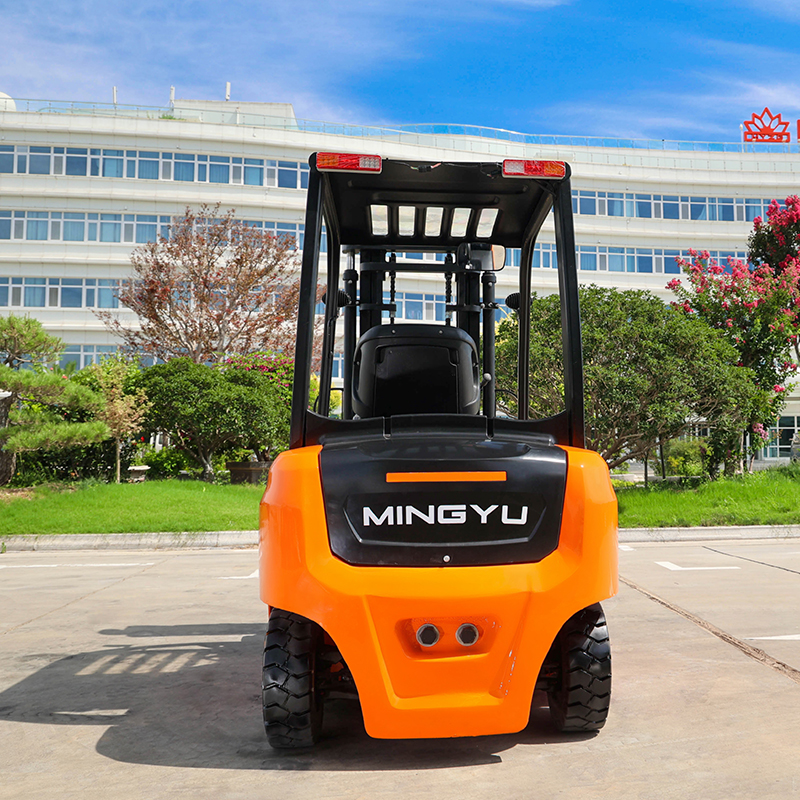

MYZG CPD30-A electric Forklift

load capacity
3ton

power
Lithium Battery

operating weight
3400kg

Mini. Order
1 unit

Feature

The newest generation CPD30 Electric Forklift is designed to move freely throughout its operational environment. The new designed steering wheel\ new brake system and the easy-tooperate levers provide total handling operation.The extra foot space is provided to reduce operator fatigue significantly. The new wide-open, non-slip step makes getting in and out easy and safe.

Discription

ModelCPD30A
Power Typeaccumulator
rated load lifting capacity3000kg
Load centre distance500mm
driving styleSit down
lengthwith fork3455mm
without fork2340mm
wideth1225mm
heightDo not raise the mast height2020mm
Overhead guard height1970mm
Max height at working4132mm
Distance from seat surface to top guard frame980mm
wheel base1700mm
front overhang330mm
rear overhang375mm
front wheel track1043mm
rear wheel track975mm
minimum ground clearance130mm
Standard lifting height3000mm
free lifting height45mm
Fork adjustment range260-1100mm
minimum turning radius2300mm
Minimum right-angle channel width(1100*1100 pallets)4058mm
Gantry angle (front/rear)6/12°
Maximum lifting speed without load400mm/s
Maximum lifting speed with full load260mm/s
Maximum operating speed without load15Km/h
Maximum operating speed with full load14Km/h
Max gradeability with full loading15%
Weight unladen3400Kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Solid tyre/pneumatic tyre
tyre size(front)200/50-10
tyre size(rear)18X7-8
Brake/driving brakeEMBR
parking brakeEMBR
Battery voltage/capacity154V/105Ah
drive motor power13Kw
Oil pump motor power16Kw
