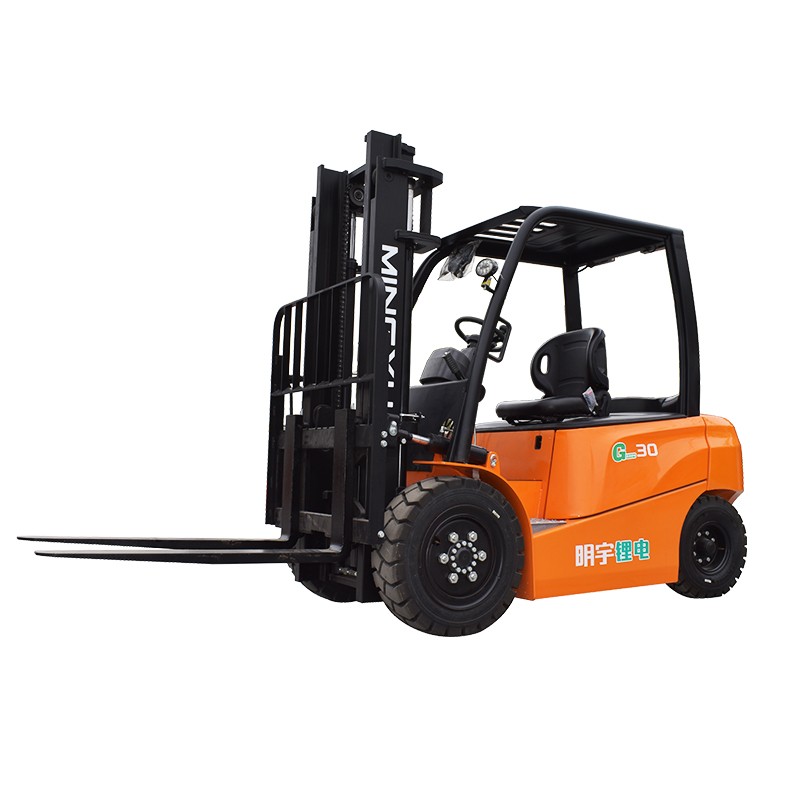

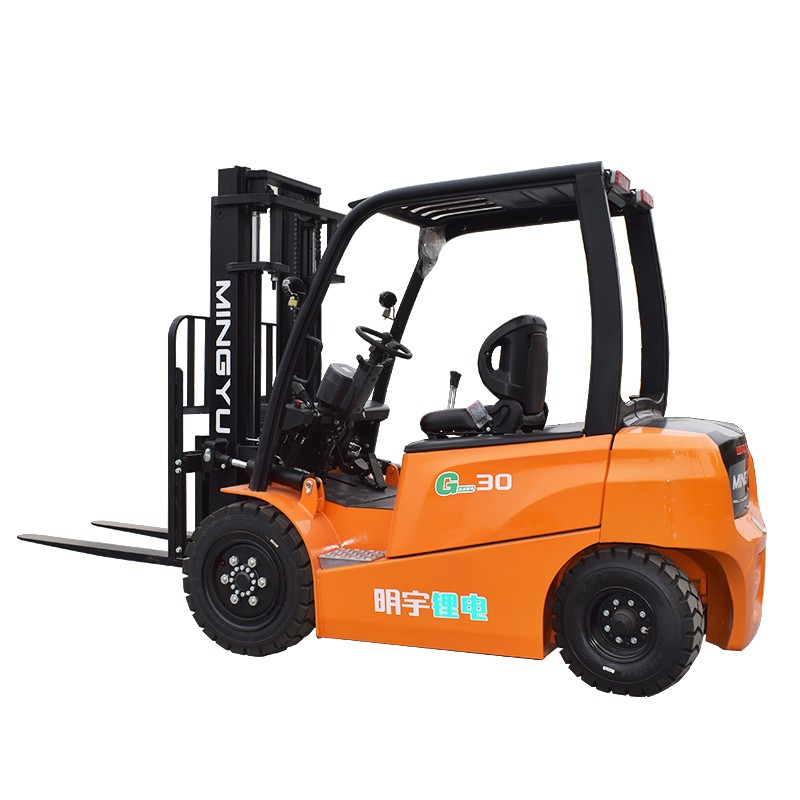

MYZG CPD30-B electric Forklift

load capacity
3ton

power
Lithium Battery

operating weight
4100kg

Mini. Order
1 unit

Feature

The newest generation CPD30 Electric Forklift is designed to move freely throughout its operational environment. The new designed steering wheel\ new brake system and the easy-tooperate levers provide total handling operation.The extra foot space is provided to reduce operator fatigue significantly. The new wide-open, non-slip step makes getting in and out easy and safe.

Discription

ModelCPD30
Power Typeaccumulator
rated load lifting capacity3000kg
Load centre distance500mm
load centre distanceSit down
lengthwith fork3710mm
without fork2598mm
wideth1232mm
heightDo not raise the mast height2062mm
Overhead guard height2105mm
Max height at working4183mm
Distance from seat surface to top guard frame980mm
wheel base1750mm
front overhang412.5mm
rear overhang464mm
front wheel track1005.5mm
rear wheel track988mm
minimum ground clearance127mm
Standard lifting height3000mm
free lifting height45mm
Fork adjustment range260-1100mm
minimum turning radius2450
Minimum right-angle channel width(1100*1100 pallets)4162.5mm
Gantry angle (front/rear)6/12°
Maximum lifting speed without load380mm/s
Maximum lifting speed with full load300mm/s
Maximum operating speed without load13Km/h
Maximum operating speed with full load12Km/h
Max gradeability with full loading15%
Weight unladen4100 Kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Pneumatic tyre/pneumatic tyre
tyre size(front)28x9-15
tyre size(rear)6.50-10
Brake/driving brakeFoot Brake
parking brakeHand Brake
Battery voltage/capacity80V/206Ah
drive motor power10Kw
Oil pump motor power12Kw
fork length1070mm
