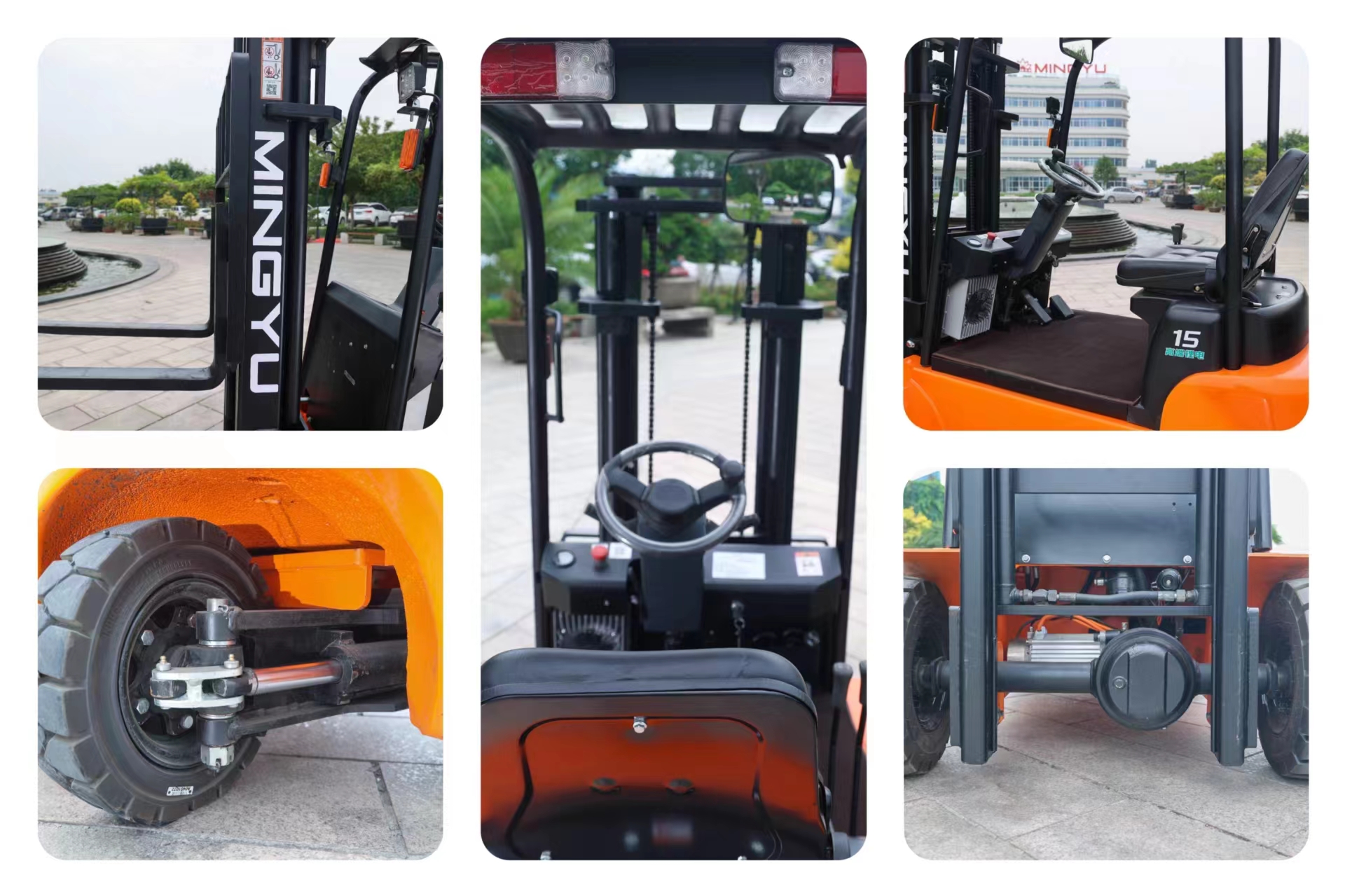

MYZG CPD15 Electric Forklift

Load capacity
1.5ton

power
Lead-acid battery / Lithium

Weight unladen
1900kg

Mini. Order
1 unit

Feature

1、Zero emission ;Low noise;Free of heavy metals;No corrosion ;No acid mist volatilization . 2、Unnecessary of fluid adding and dust proofing;Daily maintenance free ;Manual maintenance free . 3、Over 75% capacity reserved after 4000 shifts operation ;Longer service life than lean-acid battery in equal working condition ;5 years or ten thousand hours quality guarantee for high performance. 4、2 hours charging meet 6-8 hours working demand ;High-energy density, self discharging rate lower than 1% per month, ;95% energy conversion rate,superior charging and discharging performance ;Flexible to charge,easy to operate,no impact on battery life;Unnecessary to change battery,cost saving. 5、Lithium battery is better than lead-acid battery when working between -25℃and 55℃. 6、According to the characteristics of industrial vehicles,it achieces safety protection design which includes lithium battery materials,battery core type,pack technique and system power management;“Multiple node safety closed circuit protection” realizing truck real time closed circuit protection in variable conditions ;“ lock affirming” function during charging avoiding “hot connecting and disconnecting” operation effectively ;“whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety.

Discription

ModelCPD15
Power Typeaccumulator
rated load lifting capacity1500kg
Load centre distance400mm
driving styleSit down
lengthwith fork3035mm
without fork1935mm
wideth1130mm
heightDo not raise the mast height2013mm
Overhead guard height1995mm
Max height at working3403mm
Distance from seat surface to top guard frame955mm
wheel base1355mm
front overhang330mm
rear overhang280mm
front wheel track957mm
rear wheel track780mm
minimum ground clearance103mm
Standard lifting height2800mm
free lifting height0mm
Fork adjustment range160-1100mm
minimum turning radius1780mm
Minimum right-angle channel width(1100*1100 pallets)2955mm
Gantry angle (front/rear)5/10°
Maximum lifting speed without load300mm/s
Maximum lifting speed with full load250mm/s
Maximum operating speed without load12Km/h
Maximum operating speed with full load11Km/h
Max gradeability with full loading10%
Weight unladen2010Kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Pneumatic tyre/pneumatic tyre
tyre size(front)18x7-8
tyre size(rear)16*6-8
Brake/driving brakeEMBR
parking brakeEMBR
Battery voltage/capacity60V/105AH
drive motor power3Kw
Oil pump motor power4Kw
