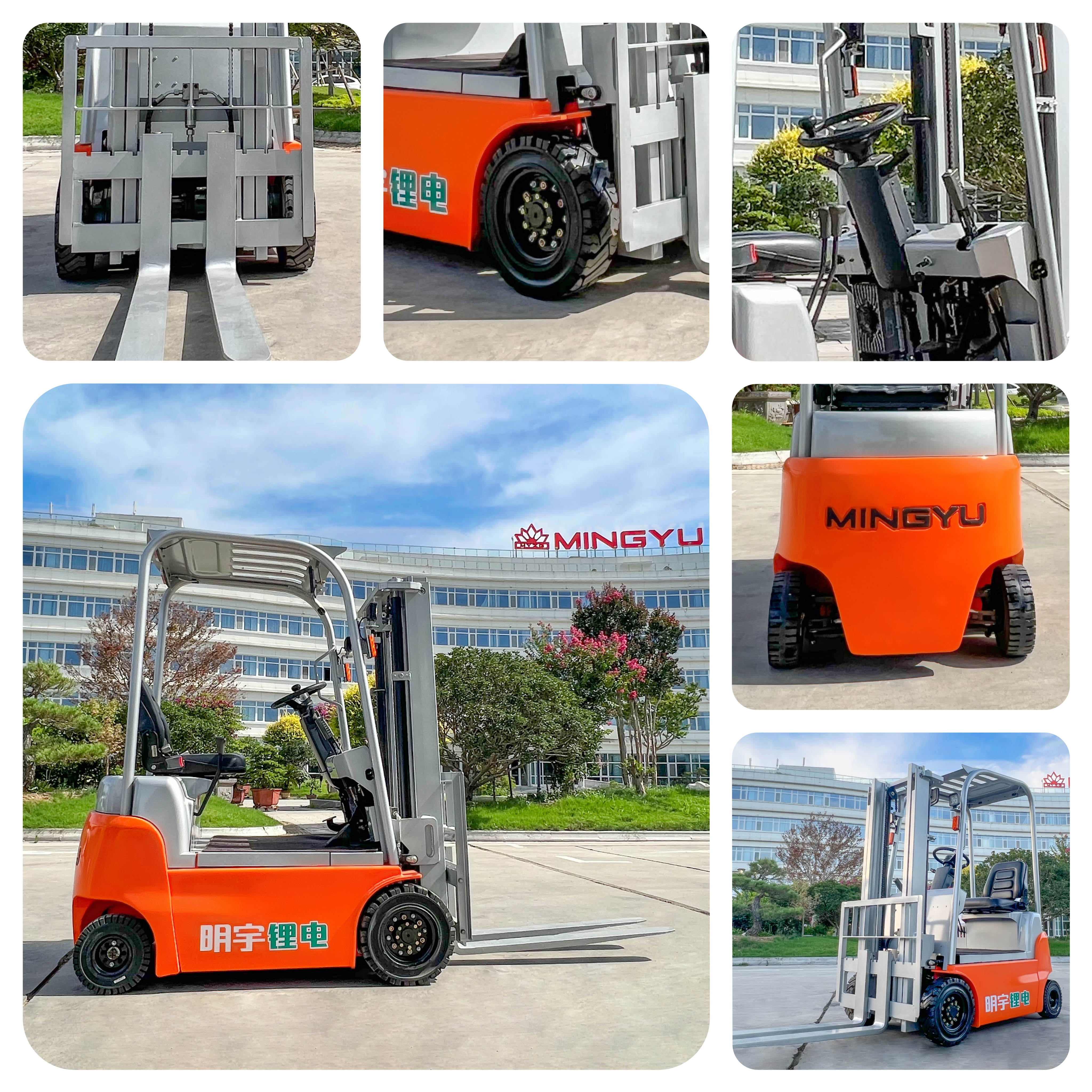

CPC-A series lithium battery forklifts are high quality products developed by MINGYU on the basis of the advantages of "lithium battery special structure" and "permanent magnet synchronous technology". It has two models, one is standard model and the other is heavy-duty model. Following the family design of electric forklifts, they are provided with some key parts compatible with internal combustion forklifts, and optimized mainly on the overall performance, ergonomics, reliability, maintenance, outdoor operation ability and load capacity in a bid to meet customers’ use scenarios of internal combustion forklifts. The heavy-duty model is capable of meeting the application demand of users in heavy-duty working conditions.
Model | CPD10 | |
Power Type | accumulator | |
rated load lifting capacity | 1000kg | |
Load centre distance | 400mm | |
driving style | Sit down | |
length | with fork | 3020mm |
without fork | 1920mm | |
wideth | 930mm | |
height | Do not raise the mast height | 2013mm |
Overhead guard height | 1995mm | |
Max height at working | 3403mm | |
Distance from seat surface to top guard frame | 955mm | |
wheel base | 1355mm | |
front overhang | 315mm | |
rear overhang | 280mm | |
front wheel track | 806mm | |
rear wheel track | 780mm | |
minimum ground clearance | 103mm | |
Standard lifting height | 2800mm | |
free lifting height | 0mm | |
Fork adjustment range | 160-782mm | |
minimum turning radius | 1760mm | |
Minimum right-angle channel width(1100*1100 pallets) | 2935mm | |
Gantry angle (front/rear) | 5/10° | |
Maximum lifting speed without load | 320mm/s | |
Maximum lifting speed with full load | 250mm/s | |
Maximum operating speed without load | 12Km/h | |
Maximum operating speed with full load | 11Km/h | |
Max gradeability with full loading | 10% | |
Weight unladen | 1700Kg | |
Number of wheels = driving wheels/steering wheels | 2/2 | |
Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
tyre size(front) | 5.00-8 | |
tyre size(rear) | 15x4*1/2-8 | |
Brake/driving brake | EMBR | |
parking brake | EMBR | |
Battery voltage/capacity | 60V/105AH | |
drive motor power | 3Kw | |
Oil pump motor power | 3Kw |
