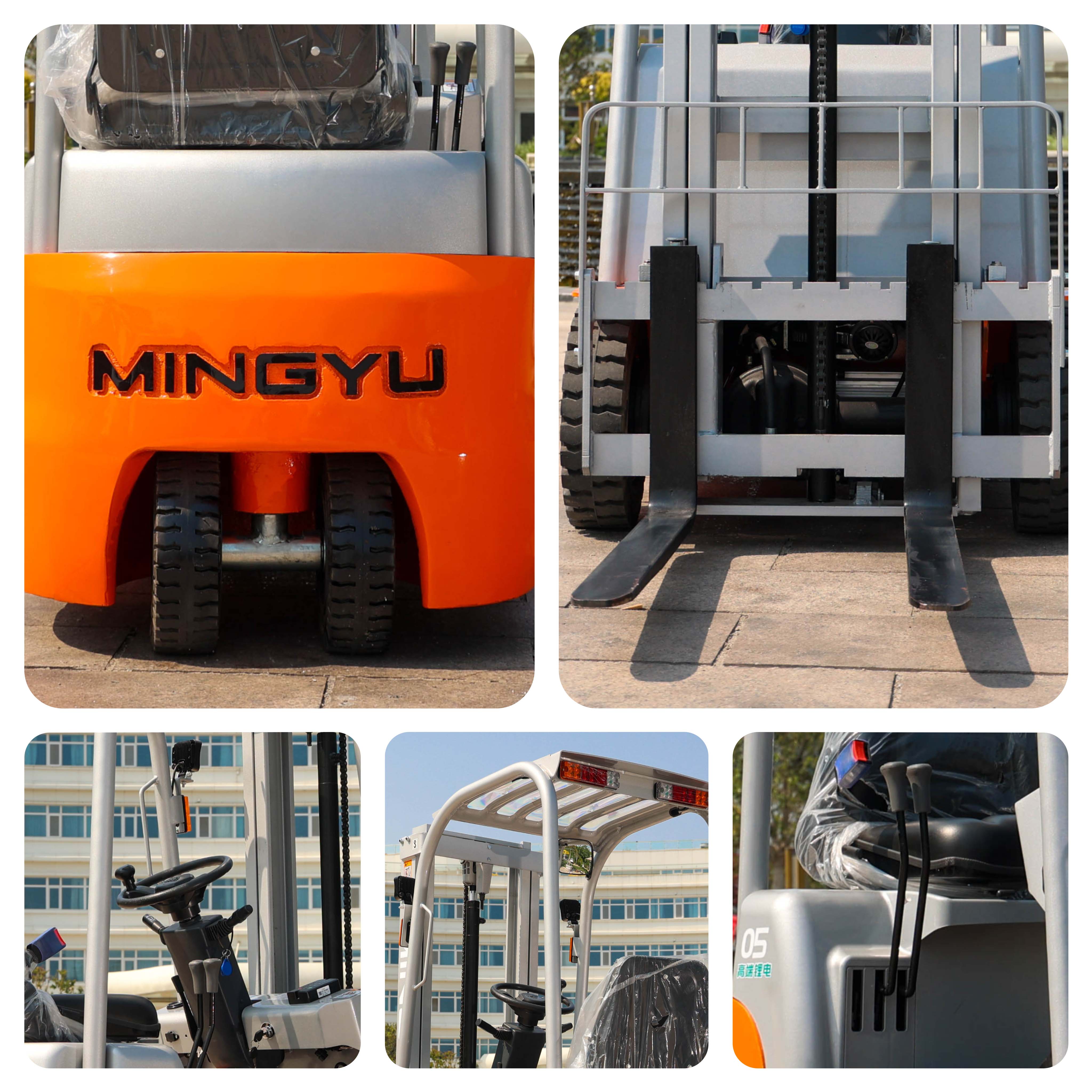

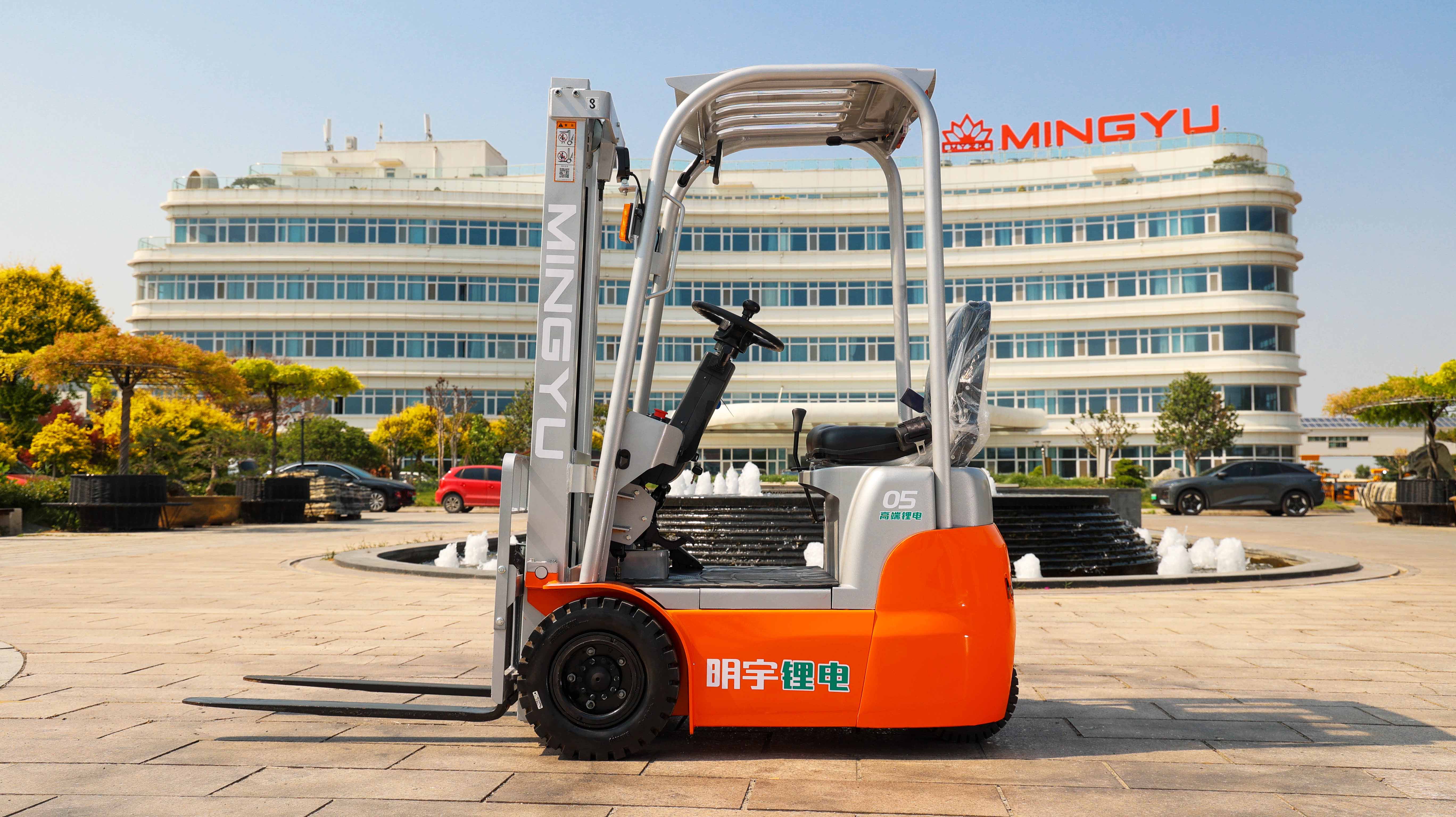

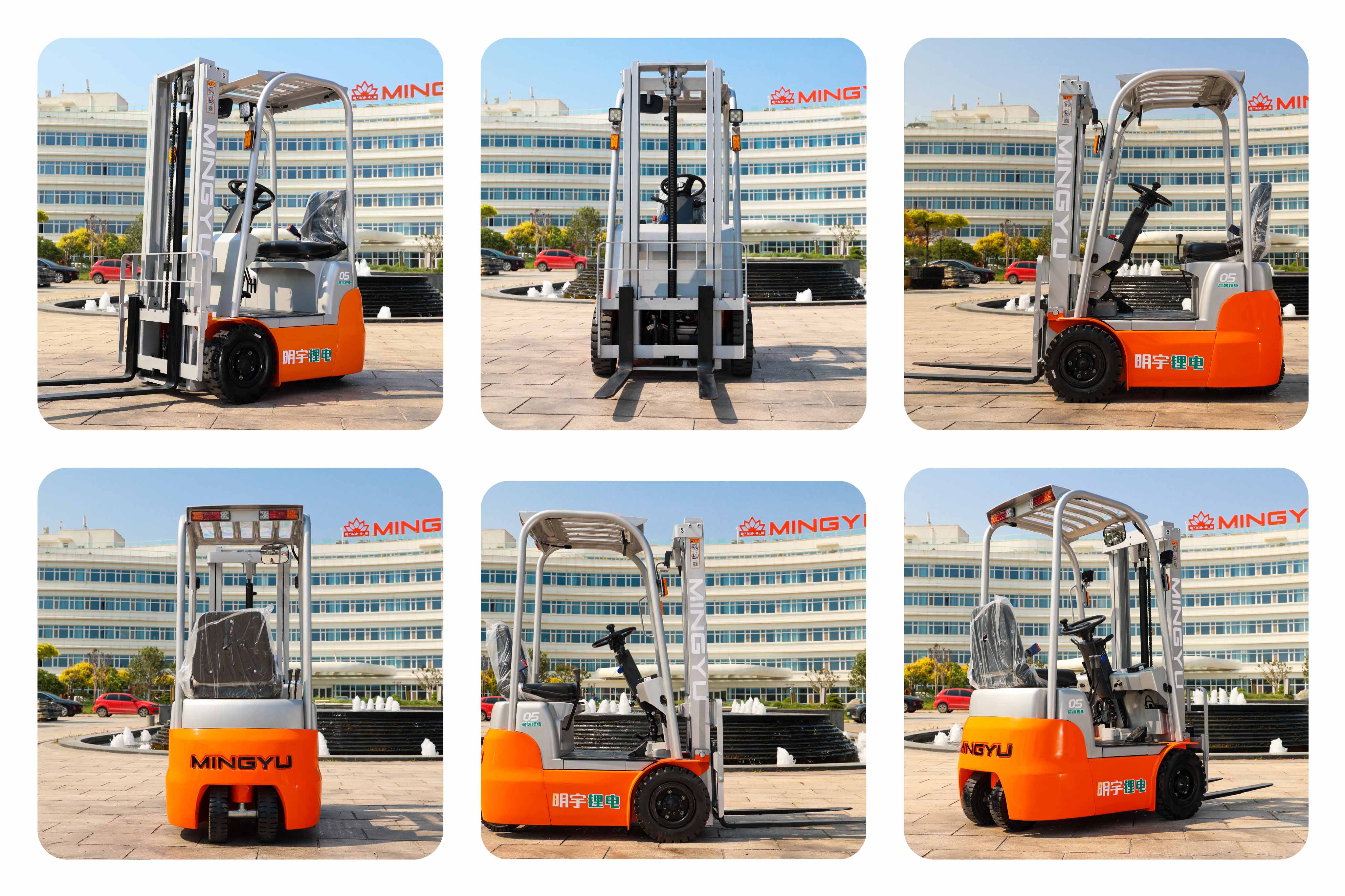

MYZG CPD05 Electric Forklift

Load capacity
0.5ton

Power
Lithium Battery

Operating weighht
1220kg

Mini. Order
1 unit

Feature

Mingyu CPD05: A Versatile 3-Wheel Electric Forklift from a Leading Manufacturer As a trusted Electric Forklift manufacturer, Mingyu presents the CPD05, a multi-purpose 3-Wheel Electric Forklift designed to excel in various applications. This ergonomically designed forklift boasts impressive run time, travel speeds, and lift/lowering capabilities, making it a top choice for industries requiring efficient material handling. 1、Compact Design: Ideal for narrow aisles and tight spaces. 2、Advanced Technology: Powered by innovative technology, offering superior performance and reliability. 3、Easy Maintenance: Minimizes downtime and maximizes productivity. 4、Enhanced Ergonomics: Designed for operator comfort and efficiency.

Discription

ModelCPD05
Power TypeLi-ion
rated load lifting capacity500kg
Load centre distance400mm
driving styleSit down
lengthwith fork2230mm
without fork1395mm
wideth887mm
heightDo not raise the mast height1820mm
Overhead guard height1820mm
Max height at working3188mm
wheel base943mm
front overhang278mm
rear overhang174mm
front wheel track784mm
rear wheel track250mm
minimum ground clearance60mm
Standard lifting height2500mm
free lifting height0mm
Fork adjustment range152-782mm
minimum turning radius1285mm
Minimum right-angle channel width2565mm
Gantry angle (front/rear)5/6°
Maximum lifting speed without load300mm/s
Maximum lifting speed with full load250mm/s
Maximum operating speed without load12Km/h
Maximum operating speed with full load11Km/h
Max gradeability with full loading10%
Weight unladen1220Kg
Number of wheels = driving wheels/steering wheels2/2
Tyre type (front/rear)Solid tyre
tyre size(front)4.00-8
tyre size(rear)3.50-5
Brake/driving brakeElectromagnetic braking
parking brakefoot brake
Battery voltage/capacity76.8V/60AH
drive motor power2Kw
Oil pump motor power2Kw
