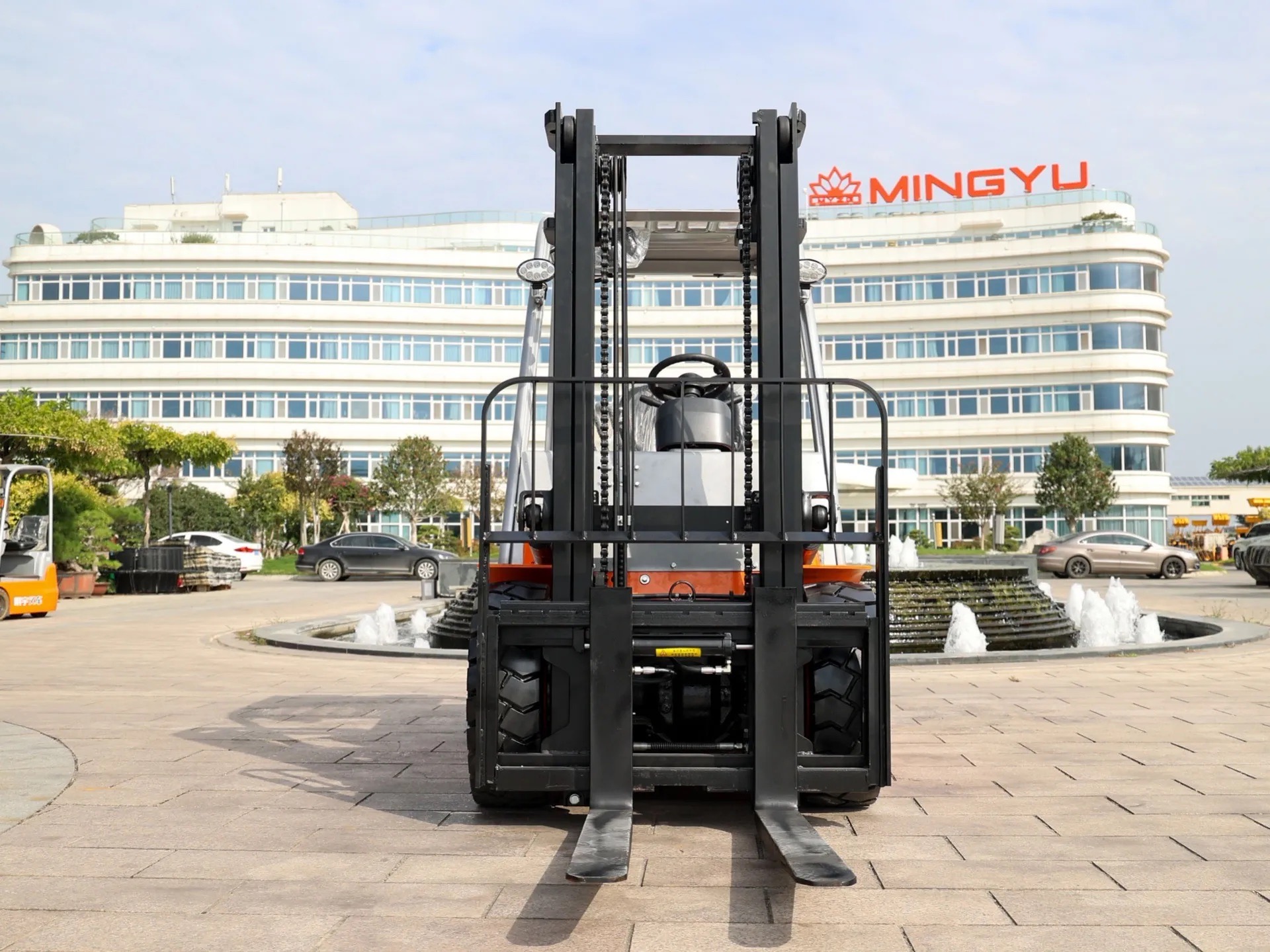

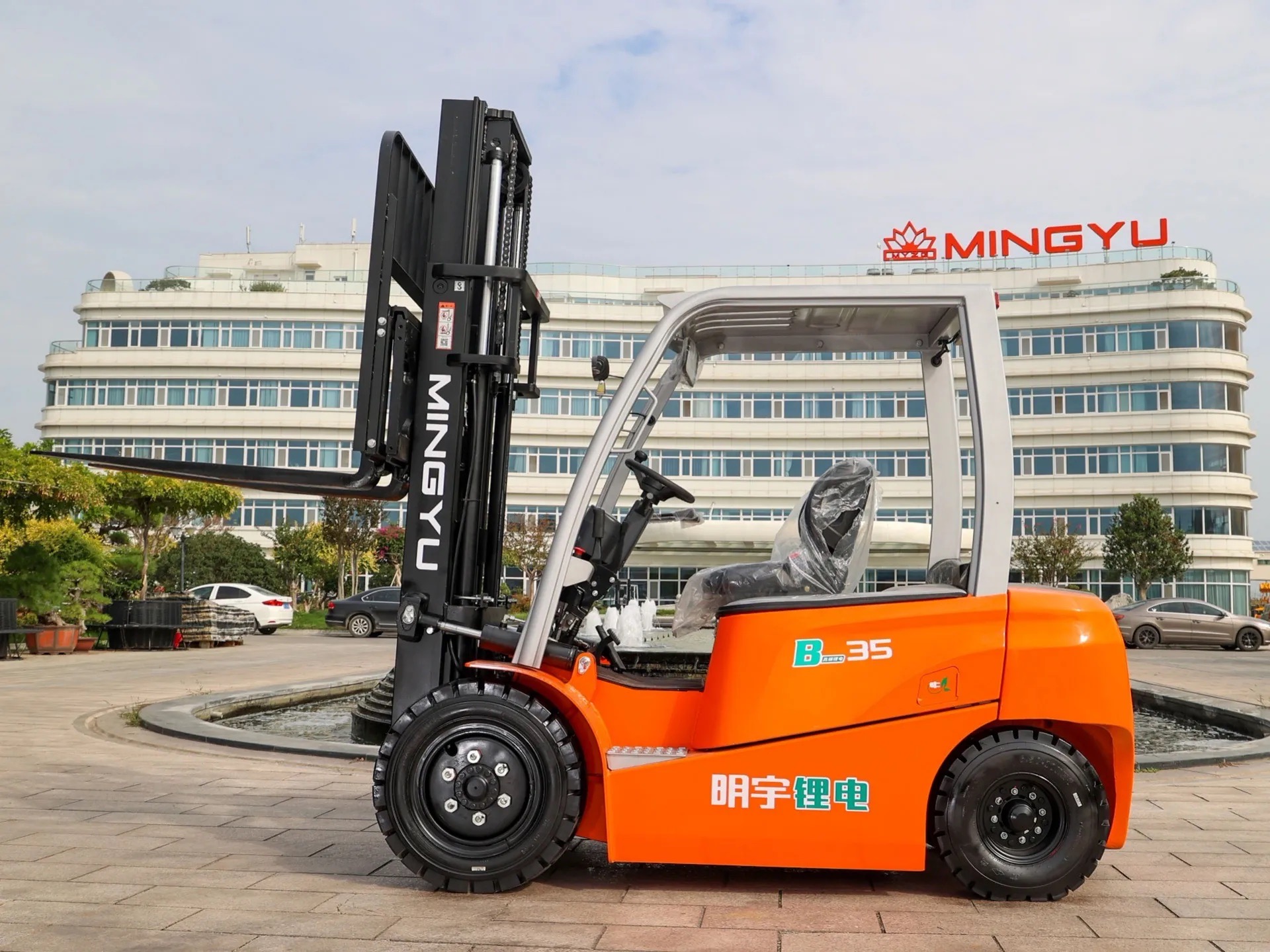

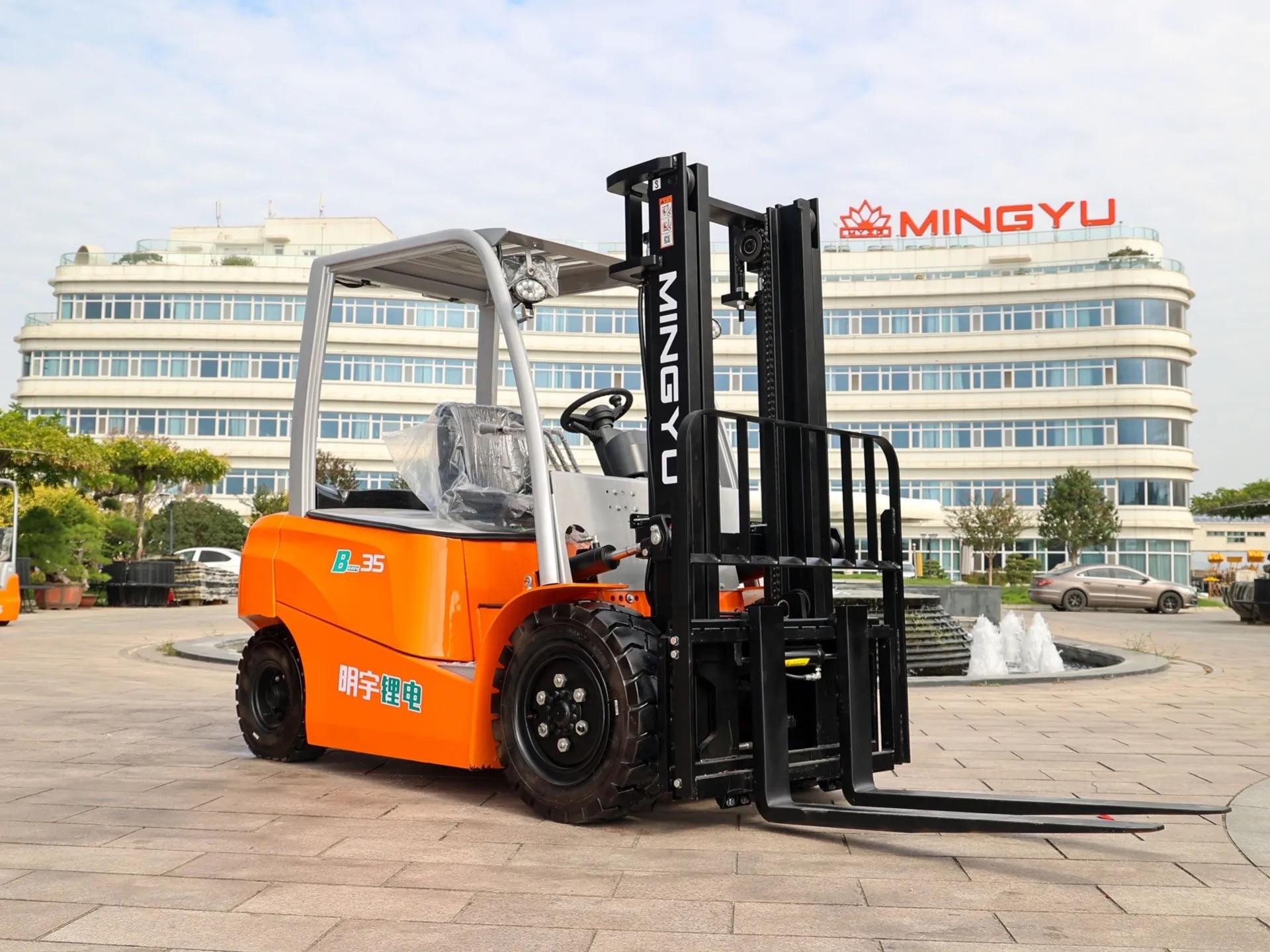

MYZG CPD35-B electric Forklift
load capacity
3.5ton
power
Lithium Battery
operating weight
4215kg
Mini. Order
1 unit
Feature
The newest generation CPD35-B Electric Forklift is designed to move freely throughout its operational environment. The new designed steering wheel\ new brake system and the easy-tooperate levers provide total handling operation.The extra foot space is provided to reduce operator fatigue significantly. The new wide-open, non-slip step makes getting in and out easy and safe.
Discription
| Model | CPD35 | |
| Power Type | accumulator | |
| rated load lifting capacity | 3500kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3757mm |
| without fork | 2682mm | |
| wideth | 1232mm | |
| height | Do not raise the mast height | 2062mm |
| Overhead guard height | 2105mm | |
| Max height at working | 4183mm | |
| Distance from seat surface to top guard frame | 980mm | |
| wheel base | 1780mm | |
| front overhang | 455mm | |
| rear overhang | 464mm | |
| front wheel track | 1005.5mm | |
| rear wheel track | 988mm | |
| minimum ground clearance | 127mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2450mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4205mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 380mm/s | |
| Maximum lifting speed with full load | 300mm/s | |
| Maximum operating speed without load | 13Km/h | |
| Maximum operating speed with full load | 12Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 4215Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 153.6V/105Ah | |
| drive motor power | 13.1Kw | |
| Oil pump motor power | 16.5Kw | |
