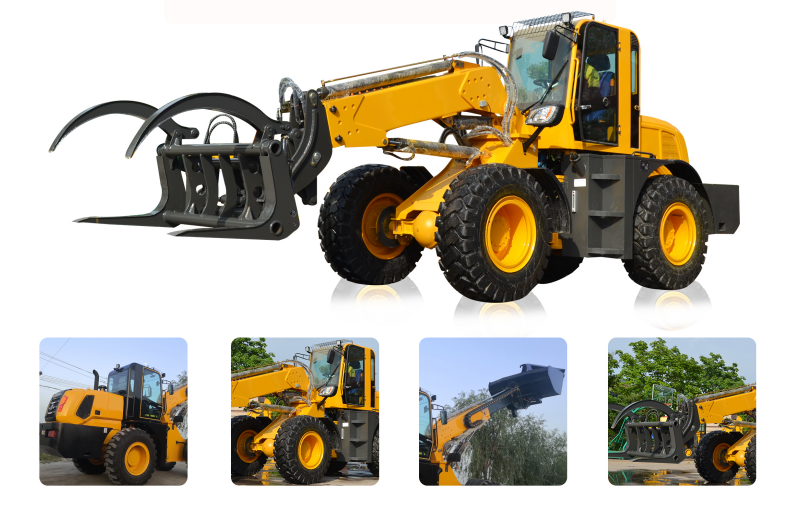

MYZG ZL3000 telescope loader

weight
6800kg

bucket capacity
1.5m³

reted load capacity
3000kg

Mini. Order
1 unit

Feature

Tl3000 is a new product developed by MYZG, which has better safety performance. Tl3000 telescopic boom loader has the function of load expansion, when stacking on uneven road surface, it can stop at the position far away from the stacking point, and use expansion and amplitude variation to complete the loading and unloading operation of goods. It is equipped with quick change device, boom shock absorption function, bucket Angle control function, and can be equipped with different auxiliary tools

Discription

RATED LOAD CAPACITY3000kg
RATED BUCKET CAPACITY1.5 m3
operating weight6800kg
engine model

YUNNEI YN38GBZ(STAGE Ⅱ)

CUMMINS QSB3.9-C100(EURO Ⅲ)

rated pOwer76kw/75kw
dimensions7200*2200*3000mm
Bucket hinge pin Height5400mm
wheel base2800mm
wheeltrack1750mm
TYRE SIZE17.5-25
System pressure20Mpa
